Swimming Pool Pump, DXD-330FM
Request a Quote

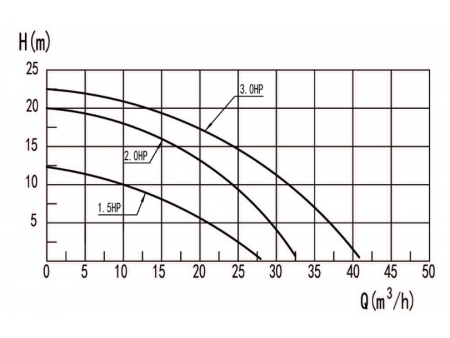

Performance Curve
Working Conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (m³/h) | Insulation class | Protection grade | Gross weight (kg) | Certification | |
| kW | HP | |||||||||
| DXD-330FM-1100 | 230V/50Hz | 1.1 | 1.5 | 2850 | 12 | 28 | F | IP X5 | 15.0 | IEC SAA CE TÜV |
| DXD-330FM-1500 | 230V/50Hz | 1.5 | 2.0 | 2850 | 20 | 32 | F | IP X5 | 17.0 | IEC SAA CE TÜV |
| DXD-330FM-2100 | 230V/50Hz | 2.1 | 3.0 | 2850 | 22 | 41 | F | IP X5 | 18.0 | IEC SAA CE TÜV |
| DXD-330FM-1500-3P | 380V/50Hz | 1.5 | 2.0 | 2850 | 20 | 32 | F | IP X5 | 17.0 | |
| DXD-330FM-2100-3P | 380V/50Hz | 2.1 | 3.0 | 2850 | 22 | 41 | F | IP X5 | 18.0 | IEC CE |
| DXD-330FM-1500 | 115V/50Hz | 1.5 | 2.0 | 3450 | 20 | 32 | F | IP X5 | 17.0 | UL |
| DXD-330FM-2100 | 115V/60Hz | 2.1 | 3.0 | 3450 | 22 | 41 | F | IP X5 | 18.0 | UL |
Packing: 685mm×295mm×435mm
Optional function: timer & no water protection
