Butt Fusion Machine FX355

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-5-butt-fusion-machine.html

90–355mm Plastic Pipe Welding

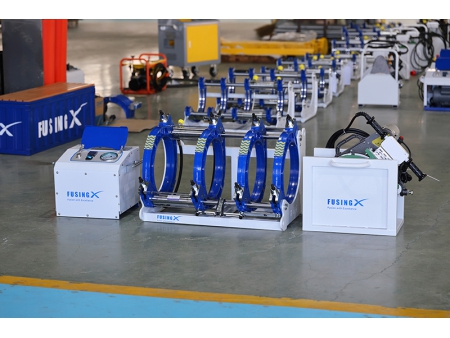

FX355 is a butt fusion machine designed for HDPE pipe welding from 90 mm to 355 mm. Built with a hydraulic control unit, welding frame, clamp system, heating plate, and electric facer, it delivers stable alignment, even heating, and reliable joint quality during on-site pipe welding. Cast aluminum multi-sized clamp inserts are designed to cover multiple pipe sizes with fewer insert sets, improving work efficiency while maintaining accurate, secure clamping.

Specifications

Model	FX355
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	90-355 mm
Applicable pipe diameters	90-110-125-140-160-180-200-225-250-280-315-355 mm
Power supply	220 V, 50 Hz, 1 PH
Total power	6.35 kW
Heating plate	3.6 kW
Facer	2.0 kW
Hydraulic unit	0.75 kW
Max. temperature	270ºC
Pressure adjusting range	0-8 MPa
Temperature deviation	±5ºC
Piston area	20.02 cm²

Details

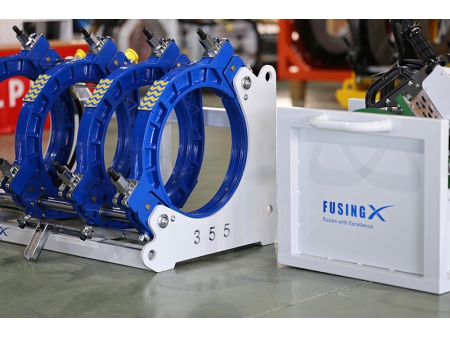

1. Frame Reinforced frame with thicker side plates for heavy-duty operation and higher load capacity.
1. DynaFX™ Hydraulic Power Unit Optimized hydraulic design provides stable, precise pressure control throughout alignment, facing, and fusion.
1. Heating Plate Surface temperature deviation is controlled within ±5°C for more even heating and consistent welding.
1. Facer (Milling Cutter) All-gear drive system delivers smooth operations, high transmission efficiency, and extended service life with minimal maintenance.
1. Single-Size Clamp Inserts Cast aluminum clamp inserts are designed to cover multiple pipe sizes, from 90 mm to 355 mm. Each pipe requires only three sets of inserts; some pipe sizes require only two. This design improves work efficiency while maintaining accurate, secure clamping.
1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
