Butt Fusion Machine FX315

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-4-butt-fusion-machine.html

90–315mm Plastic Pipe Welding

Video

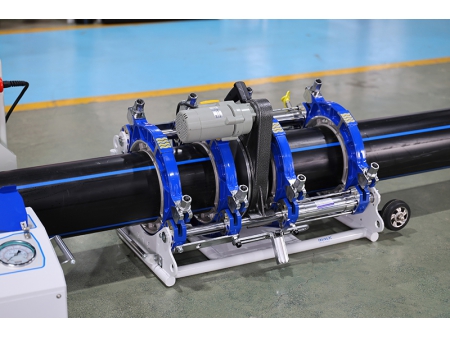

FX315 is a butt fusion machine designed for welding thermoplastic pipes and fittings, especially HDPE pipes from 90 mm to 315 mm. The butt fusion machine combines a robust welding frame, precise hydraulic operation, and even heating to produce reliable joints for medium-diameter pipeline installation.

Applications

This hydraulic butt fusion machine provides a reliable solution for medium-sized pipeline construction, such as:

Gas distribution
Water supply and drainage
Agricultural irrigation

Specifications

Model	FX315
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	90-315 mm
Applicable pipe diameters	90-110-125-140-160-180-200-225-250-280-315 mm
Power supply	220 V, 50 Hz, 1 PH
Total power	5.85 kW
Heating plate	3.1 kW
Facer	2.0 kW
Hydraulic unit	0.75 kW
Max. temperature	270ºC
Pressure adjusting range	0-8 MPa
Temperature deviation	±5ºC
Piston area	20.02 cm²

Detail Highlights

1. Frame Reinforced frame with thicker side plates for heavy-duty operation and higher load capacity.
1. DynaFX™ Hydraulic Power Unit Optimized hydraulic design provides stable, precise pressure control throughout alignment, facing, and fusion.
1. Heating Plate Surface temperature deviation is controlled within ±5°C for more even heating and consistent welding.
1. Facer (Milling Cutter) All-gear drive system delivers smooth operations, high transmission efficiency, and extended service life with minimal maintenance.

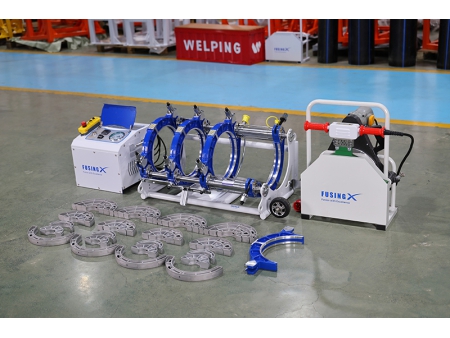

1. Single-Size Clamp Inserts Cast aluminum clamp inserts simplify size changes. From 90 mm to 315 mm, each pipe size requires three inserts and some pipe sizes only needs only two inserts, helping improve work efficiency and clamping accuracy.
1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
