Butt Fusion Machine FX250

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-3-butt-fusion-machine.html

63–250mm Plastic Pipe Welding

Video

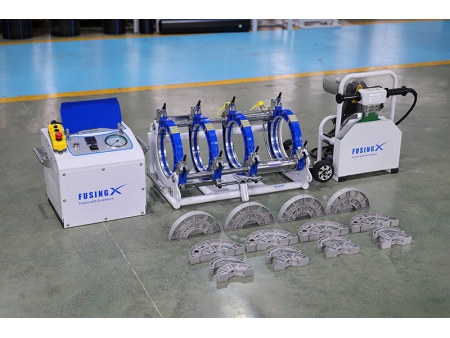

FX250 is a semi-automatic butt fusion machine designed for HDPE pipe welding, with pipe diameters ranging from 63 mm to 250 mm. With its reinforced frame, precise hydraulic control, and controlled heating performance, the butt fusion machine delivers stable operation and reliable joint quality in demanding field conditions.

Applications

The semi-automatic fusion machine offers a pipe fusion solution for contractors working on the following projects:

Municipal infrastructure projects
Industrial pipeline installation
Energy pipeline construction

Specifications

Model	FX250
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	63-250 mm
Applicable pipe diameters	63-75-90-110-125-140-160-180-200-225-250 mm
Power supply	220 V, 50 Hz, 1 PH
Total power	5.05 kW
Heating plate	2.3 kW
Facer	2.0 kW
Hydraulic unit	0.75 kW
Max. temperature	270ºC
Pressure adjusting range	0-8 MPa
Temperature deviation	±5ºC
Piston area	11 cm²

Details

1. Frame Reinforced frame with thicker side plates for heavy-duty operation and higher load capacity.

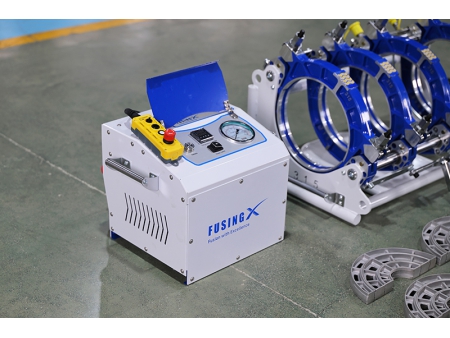

1. DynaFX™ Hydraulic Power Unit Optimized hydraulic design provides stable, precise pressure control throughout alignment, facing, and fusion.
1. Heating Plate Surface temperature deviation is controlled within ±5°C for more even heating and consistent welding.
1. Facer (Milling Cutter) All-gear drive system delivers smooth operations, high transmission efficiency, and extended service life with minimal maintenance.
1. Single-Size Clamp Inserts Cast aluminum clamp inserts simplify size changes. From 90 mm to 250 mm, each pipe size requires two inserts, helping improve work efficiency and clamping accuracy.
1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
