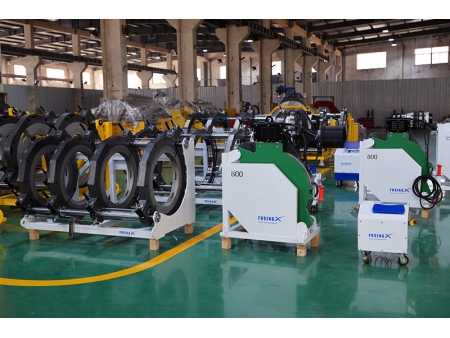

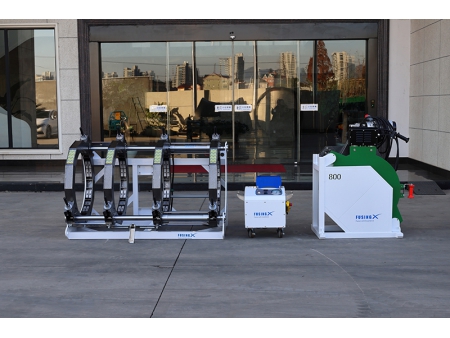

Butt Fusion Machine FX800

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-9-butt-fusion-machine.html

450–800mm Plastic Pipe Welding

FX800 is a butt fusion machine designed for welding thermoplastic pipes and fittings from 450 mm to 800 mm, including HDPE, PE, PP, PB, and PVDF. The fusion machine’s heating plate provides stable, controlled heating, while the modular anti-slip pad blocks help ensure secure pipe clamping during welding.

Applications

Built for large-diameter pipeline construction, the butt fusion machine delivers reliable fusion performance in demanding field applications, including:

Urban gas transmission networks
Water supply and drainage systems
Trenchless rehabilitation projects
Agricultural irrigation pipelines

Specifications

Model	FX800
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	450-800 mm
Applicable pipe diameters	450-500-560-630-710-800 mm
Power supply	380V, 50Hz, 3PH
Total power	16.2 kW
Heating plate	12.5 kW
Facer	2.2 kW
Hydraulic unit	1.5 kW
Pressure adjusting range	0-10 MPa
Max. temperature	270ºC
Temperature deviation	±7ºC
Piston area	31.8 CM²

Details

1. Frame Reinforced frame with strong load-bearing capacity for stable performance in heavy-duty welding applications.
1. DynaFX™ Hydraulic Power Unit Optional digital pressure gauge available for more accurate pressure monitoring and easier operation control.
1. Heating Plate Surface temperature deviation is controlled within ±7°C for more even heating and consistent welding.
1. Facer (Milling Cutter)
  - Newly designed anti-release clamping jaws provide a safer structure and more convenient operation
  - Gear-driven transmission ensures efficient, stable, and durable performance
  - Powerful copper-wound motor supports reliable facing performance
  - Reinforced aluminum die-cast facer plate with durable double-edged HSS blades
1. Tool Holder
  - Full-cover heating plate protection improve user safety and heat retention
  - Wide base with lifting lugs for easier handling and movement on site
1. Modular Anti-Slip Pad Blocks
  - Provide secure pipe clamping during welding
  - Can accommodate non-standard pipes for greater job-site flexibility
1. Electric Hoist
  - Optional electric hoist for easier lifting and positioning of the facer and heating plate
  - Connects to the rear mounting plate of the frame to enhance overall stability
  - Designed for quick installation and removal
