Butt Fusion Machine FX450

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-6-butt-fusion-machine.html

180–450mm Plastic Pipe Welding

Video

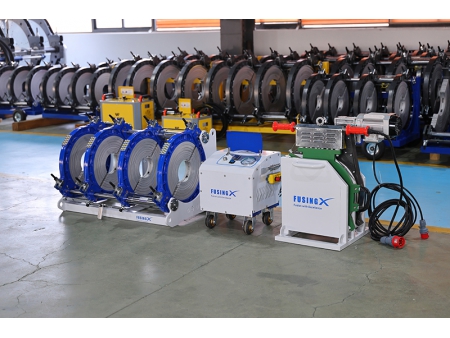

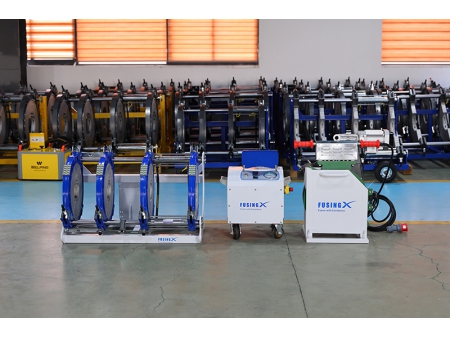

FX450 is a butt fusion machine designed for welding thermoplastic pipes and fittings from 180 mm to 450 mm, including HDPE, PE, PP, and PVDF materials. Engineered for medium-diameter pipe welding, the fusion machine is equipped with DynaFX™ HPU, a controllable heating plate, and multi-size clamp inserts. The butt fusion machine delivers stable hydraulic control, even heating, and reliable clamping to help produce strong, consistent joints on site.

Specifications

Model	FX450
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	180-450 mm
Applicable pipe diameters	180-200-225-250-280-315-355-400-450 mm
Power supply	380V, 50Hz, 3PH
Total power	8.7 kW
Heating plate	6.5 kW
Facer	1.1 kW
Hydraulic unit	1.1 kW
Pressure adjusting range	0-10 MPa
Max. temperature	270 ºC
Temperature deviation	±7ºC
Piston area	22.38 cm²

Detail Highlights

1. Frame Reinforced frame with strong load-bearing capacity for stable performance in heavy-duty welding applications.
1. DynaFX™ Hydraulic Power Unit Optional digital pressure gauge is available for more accurate pressure monitoring and easier operation control.
1. Heating Plate Surface temperature deviation is controlled within ±7°C for more even heating and consistent welding.
1. Facer (Milling Cutter) Full gear transmission ensures stable and durable performance, while the high-output copper-wound motor supports efficient facing.
1. Multi-Size Clamp Inserts Designed for secure clamping, even load distribution, and long-term reliability. Clamp inserts are available in 180 / 200 / 225 / 250 / 280 / 315 / 355 / 400 / 450 mm to cover a wide range of pipe diameters.
1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
