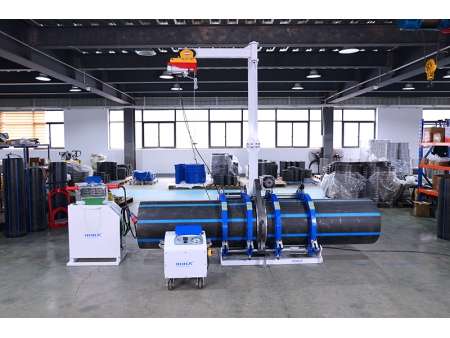

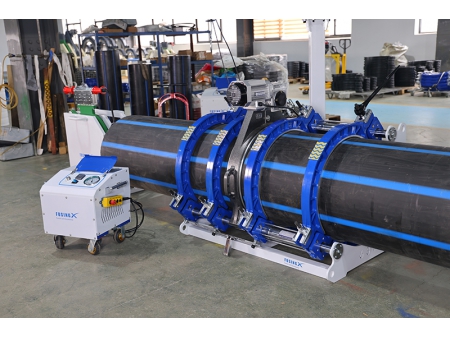

Butt Fusion Machine FX630

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-2-8-butt-fusion-machine.html

315–630mm Plastic Pipe Welding

Video

FX630 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 315 mm to 630 mm. With its reinforced frame, precise heating system, and DynaFX™ hydraulic power unit, it delivers stable operation and reliable pipes and fittings joint quality for large-diameter pipeline construction.

Applications

The butt fusion machine delivers a leak-free pipe and fitting joint welding, offering a dependable solution for contractors working on:

Municipal infrastructure projects
Industrial pipeline systems
Energy pipeline constructions

Specifications

Model	FX630
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	315-630 mm
Applicable pipe diameters	315-355-400-450-500-560-630 mm
Power supply	380V, 50Hz, 3PH
Total power	10.1 kW
Heating plate	7.5 kW
Facer	1.5 kW
Hydraulic unit	1.1 kW
Pressure adjusting range	0-10 MPa
Max. temperature	270ºC
Temperature deviation	±7ºC
Piston area	27.1 cm²

Detail Highlights

1. Frame Reinforced frame with strong load-bearing capacity for stable performance in heavy-duty welding applications.
1. DynaFX™ Hydraulic Power Unit Optional digital pressure gauge available for more accurate pressure monitoring and easier operation control.
1. Heating Plate Surface temperature deviation is controlled within ±7°C for more even heating and consistent welding.
1. Facer (Milling Cutter) Full gear transmission ensures stable and durable performance.
1. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
1. Electric Hoist An optional electric hoist available for easier lifting and positioning of the facer and heating plate. It connects to the rear mounting plate of the frame to enhance overall stability and is designed for quick installation and removal.
