Food Forming Machine
Request a Quote
AMF260 automatic food forming machine shares the same technologies and perfect forming performance with AMF600, which combines humanized design concept to realize flexibility, stability and efficiency. Due to the cost-effective feature, this food processing machine is especially suitable for medium and small factories. It is also a perfect choice used for supporting the new product development process in the large factories.
Features

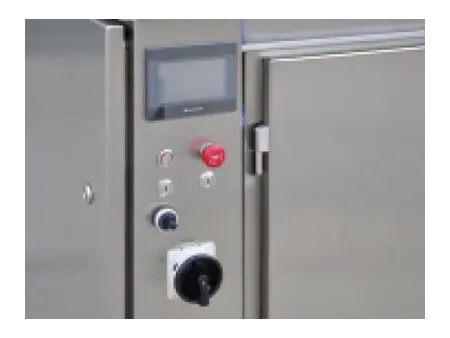

- SIEMENS PLC and convenient touch screen control.
- Precise hydraulic control system ensures the accuracy of filling and weight controlling.

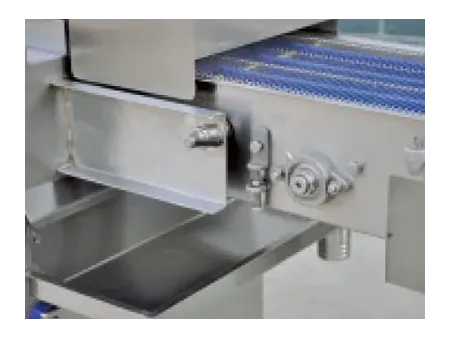

- Screw feeding system offers accurate step feeding, avoids extrusion damage of raw material and maintains the product taste.
- The precise mould control system and high-speed hydraulic drive system ensure high output and uniform product weight. Various moulds are available with convenient changing steps.
- The food machine is made of stainless steel and food grade non-metal materials, safe and reliable, meeting HACCP standard.
Technical parameter
Model | |
Width of belt | 260mm |
Air/water pressure | 6Bar/2Bar |
Power | 5.56kw |
Production capacity | About 100-300 kg/h |
Strokes | 30-55 strokes/min |
Thickness of product | 6-25mm |
Weight error | ≤1% |
Filling pressure | 3-15Mpa adjustable |
Maximum diameter | 140mm (round burger) |
Overall dimension | 2513x709x1950 mm |
