Food Forming Machine

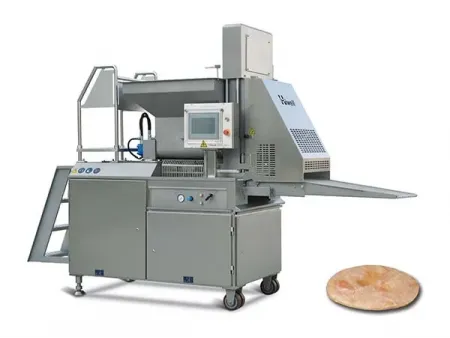

The AMF400-II automatic food forming machine is the multi-functional food production line being capable of filling, forming and conveying, etc. Furthermore, this stainless steel forming machine allows for working together with battering machine, flouring machine, frying machine, steaming machine, instant freezer and packaging, etc. Customers benefit from automatic deli production line.
Additionally, our automatic food forming machine can be customized to fit your exact needs.
- This patty forming machine is applicable for meet, poultry, fish, tomato and other vegetables.
- Our potato cake forming system utilizes screw feeding method.
- Thanks to easy and fast replacement, our automatic food forming machine delivers accurate dozing, cost containment and various moldings.
- The entire food processing equipment is made from stainless steel and some non-metallic materials, thus offering exceptional safety and meeting HACCP standards.
| Belt Width | 400mm |
| Air Pressure/Water Pressure | 6 bar/2 bar |
| Power | 11kW |
| Capacity | 200-600kg/h |
| Production Cycle | 15-55 times/min |
| Product Thickness | 6-25mm |
| Weight Tolerance | ≤1% |
| Max. Product Diameter | 135mm (Hamburger) |
| Filling Pressure | 3-15MPa |
| Overall Dimension | 2828×830×2136mm |
Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our automatic food forming machine is 1 year, excluding belt, cylinder and touch screen. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
