Food Forming Machine
Updating the system comprehensively:
- It can be suitable for metal forming plates
- The protective grade for the electric apparatus parts reach to IP67
- The speed increases to 70 stokes /min
- Material leakage decreases to ≤1.5%
- New user interface
- To avoid the operation mistake, with high safe guarantee.

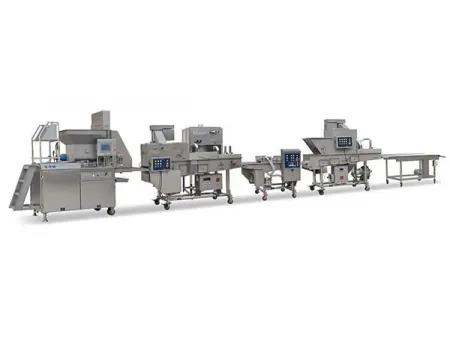

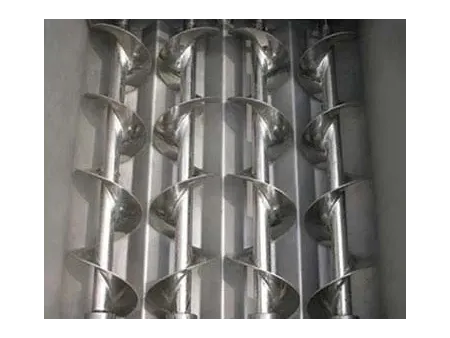

The AMF600-IV automatic multi-function food forming machine is amazing food processing equipment that performs various functions such as meat filling and forming. The forming machine can be combined with a batter machine, preduster, fryer, cooker, instant freezer and packing device to create a complete food production line. The machine features a four-screw feeding system, which greatly increases production capacity and operating stability. The highly accurate portion control design realizes a cost efficient food production output.
The automatic multi-function food forming machine is designed for the handling of various meets such as poultry, fish, beef and shrimp, as well as other food products. It is a versatile machine that can form patties of meat as well as minced/sliced products.

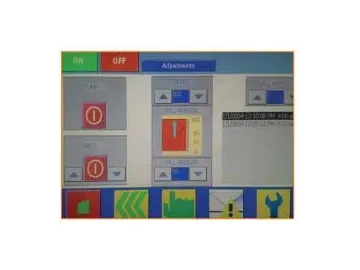

Electric apparatus: The food forming machine is equipped with a Siemens PLC processor that is touch screen operation. The Chinese/English operating system is easy to use and features an automatic failure alarm system.
Safety features: Magnetic protection switch (safe cover).
Hydraulic parts: The machine adopts Vickers, Stauff and Parker integrated hydraulic original parts to guarantee complete, stable operation.
Pneumatic system: German FESTO pneumatic system. It is constructed from stainless steel and is designed according to HACCP and CE specifications.
| Width of the belt | 600mm |
| Air / water pressure | 6Bar/ 2Bar |
| Power | 15.12kW |
| Production capacity | About 500-1200kg/hour |
| Strokes | 30-70 strokes per minute |
| The thickness of product | 6-40mm |
| Weight Error | ≤1% |
| The maximum diameter | 150mm (for round burger) |
| Filling pressure | 3-15Mpa adjustable |
| Overall dimension | 3170×1176×2430mm |
