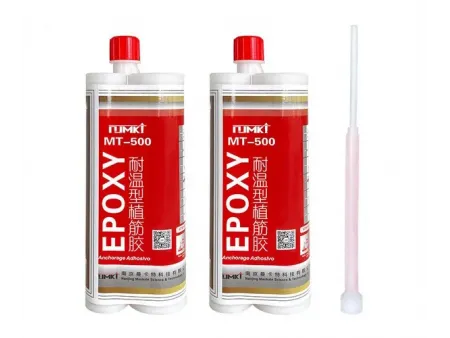

Fast Curing Anchoring Adhesive, MT-500
Request a Quote
Structural Adhesives
Structural adhesive for fast setting anchoring of threaded and reinforcing bars in concrete
Developed for time-critical applications, the fast-curing anchoring adhesive is formulated to accelerate installation schedules without compromising performance. Ideal for sectors such as rail maintenance and emergency infrastructure repair, this structural adhesive reaches load-bearing strength in just 2 hours at 25-30°C, significantly improving onsite efficiency.
The formulation retains all the standard features such as high bond strength, seismic resistance, durability under fatigue loading, and long-term chemical stability while providing faster turnaround for projects that demand tight construction timelines.
European Technical Assessment (ETA) for post-installed rebar and anchor applications
Technical Data
| Property | Standard Requirement | Test Result | ||||
| Grade A | Grade B | |||||
| Colloidal performance | Splitting tensile strength | ≥8.5MPa | ≥7.0MPa | 19.57MPa | ||
| Bending strength | ≥50MPa | ≥40MPa | 77.5MPa | |||
| Compressive strength | ≥60MPa | 107.6MPa | ||||
| Bonding Capacity | Steel-to-steel tensile shear strength | ≥10MPa | ≥8MPa | 21.3MPa | ||
| Bonding strength of concrete and ribbed steel bars under the constraint drawing condition | C30 | ≥11.0MPa | ≥8.5MPa | 13.8MPa | ||
| C60 | ≥17.0MPa | 14.0MPa | 19.2MPa | |||
| Steel-to-steel T impact peeling length | ≤25mm | ≤40mm | 0mm (no crack) | |||
| Heat distortion temperature | Method B with bending stress of 0.45MPa | ≥65℃ | ≥60℃ | 67.0℃ | ||
| Nonvolatile content | ≥99% | 99.8% | ||||
| Resistance to environmental factors | Resistance to hygrothermal aging | ≤12% | ≤18% | 4.4% reduction | ||
| Resistance to heat aging | ≤5 | No requirements | 2.9% reduction | |||
| Resistance to freeze-thawing | ≤5 | 3.4% reduction | ||||
Curing Time
| Temperature | Installation Time | Gelling Time | Full Curing Time |
| -10℃~0℃ | 50min | 7h | 72 |
| 1℃~9℃ | 30min | 5h | 48 |
| 10℃~19℃ | 20min | 4h | 24 |
| 20℃~24℃ | 10min | 2.5h | 12 |
| 25℃~30℃ | 8min | 2h | 9 |
| 31℃~40℃ | 5min | 1.5h | 6 |
Features
- Excellent resistance to chemicals, low temperatures, and aging, ensuring consistent performance in harsh environments.
- Creep-free stability under normal conditions, providing long-term anchoring reliability.
- Effective anchoring performance even in damp or moisture-prone substrates, expanding usability across jobsite conditions.
- Outstanding weld resistance, flame retardancy, and seismic performance, contributing to overall structural safety.
- Minimal shrinkage during curing, helping maintain high anchoring precision and bond strength.

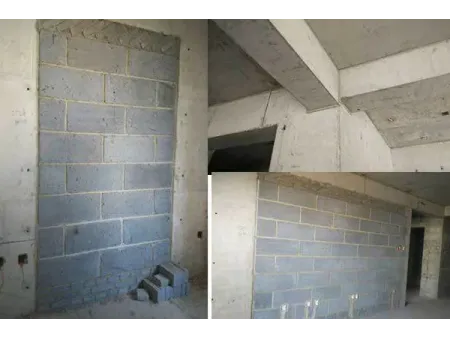

Applications
- Anchoring of steel structures to concrete for load-bearing connections

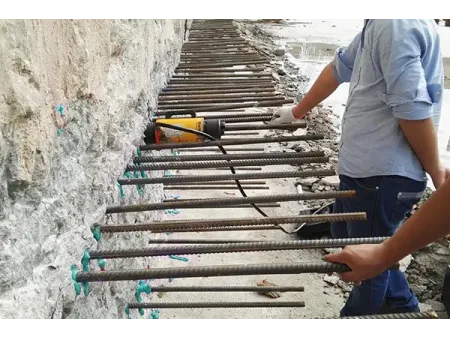

- Post-installed rebar and threaded rod anchoring
- Structural reinforcement and rebar installation
- Fixing of curtain wall brackets and facade support systems
- Foundation expansion and retrofit of bridge substructures
- Mechanical fastening of stone cladding systems and exterior panels
- Tunnel infrastructure and utility pipe support anchoring
- Renovation and extension of railway and high-speed rail infrastructure
Certifications & Reports
- European Technical Assessment (ETA) for post-installed rebar and anchor applications
- Fire Resistance Testing conducted in accordance with EN 1363-1 and ISO 834 standards
- Long-Term Durability Assessment supporting a 100-year service life, as per European Assessment Document (EAD) guidelines
- Structural Safety Evaluation Report for A-grade adhesive formulations
- Tensile and Shear Load Capacity Reports for threaded rod applications
- Tensile Load Performance Report for rebar anchoring applications
- Weld-Resistance Testing Report for embedded components
- Environmental and Non-Toxicity Compliance Reports, including Total Volatile Organic Compounds (TVOC) assessments
- Seismic Performance Report for post-installed rebar under dynamic loads
All reports and certifications are available upon request.
Basic Information
- Packaging: 16 cartridges per box, with a net capacity of 500 ml per cartridge
- Gross weight: Approximately 14.9 kg per box
- Carton dimensions: 380 mm × 190 mm × 290 mm (L × W × H)
- Shelf life: 18 months when stored in standard room temperature conditions
- Storage requirements: Keep away from direct sunlight, open flames, and heat sources
