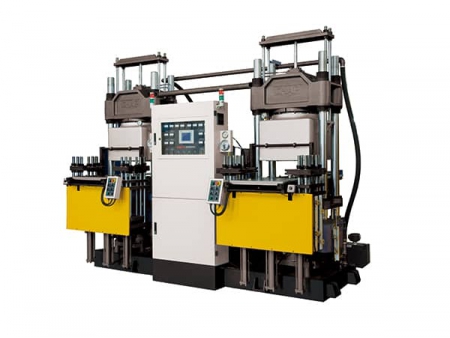

C-XLB-D540×600 2500KN Vacuum Rubber Vulcanizing Machine

C-XLB-D540×600 2500KN  Vacuum Rubber Vulcanizing Machine
C-XLB-D540×600 2500KN  Vacuum Rubber Vulcanizing Machine
C-XLB-D540×600 2500KN  Vacuum Rubber Vulcanizing Machine
C-XLB-D540×600 2500KN  Vacuum Rubber Vulcanizing Machine
Request a Quote

Product introduction
C-XLB-D540×600.
Heating plate size: 540 mm×600 mm.
Clamping force: 2500 KN.

Applications
CHAP vacuum rubber vulcanizing machine is ideally suited for producing rubber molded products that are of complex shapes and difficult to mold as well as rubber products that are easy to produce bubble.

Features
  • The vertical rubber molding machine has two operation modes for customers to choose from based on their application needs: manual or semi-automatic.
  • This machine is equipped with a fully enclosed security screen and infrared light curtain protection device, thus ensuring a higher level of safety during operation.
  • This molding machine uses an electric hydraulic proportional hydraulic system with double power, double oil pumps and a double motor in order to carry out independent operation.
Technical Specifications of Vacuum Rubber Vulcanizing Machine

C-XLB-D540x600/DZ2500 C-XLB-D540x600/DZ2500(Set)
Clamping force 2500 KN 2500 KN
Clamping stroke 300 mm 300 mm
Rapid clamping speed ≥50 mm/s ≥50 mm/s
Heating plate size 540 mm×600 mm 540 mm×600 mm
Heating plate spacing 300~400 mm 300~400 mm
Max operating temperature of heating plate 250 ℃ 250 ℃
Vacuum cover stroke 250 mm 250 mm
Max mould thickness 240 mm 240 mm
Ejector stroke 300 mm 300 mm
Max ejector force 60 KN 60 KN
Motor power 5.5 KW (5.5+5.5) KW
Heating power 18.3KW (18.3+18.3)KW
External dimension (LxWxH) 2100mm×2550×
(2800~2900)mm
3800mm×2550×
(2800~2900)mm
Oil tank capacity 250 L 400 L

As a professional vacuum rubber vulcanizing machine manufacturer in China, CHAP is ISO9001 certified due to its production and operation in rigid compliance with international standards. With superior quality, reliable performance, and high efficiency, our products, such as plate rubber vulcanizing machine, rubber transfer molding machine, custom rubber machine, and more, are well received by global customers in South America, Southeast Asia, East Asia, and Middle East, etc. In addition, our company is located in Ningbo City. Here we have convenient access to any kind of transportation, which not only can save our transportation cost of raw materials, but also can lower your purchasing cost. If you have any needs about our products, please contact us via email or contact address available on this website. The staff at CHAP is ready to serve you.
