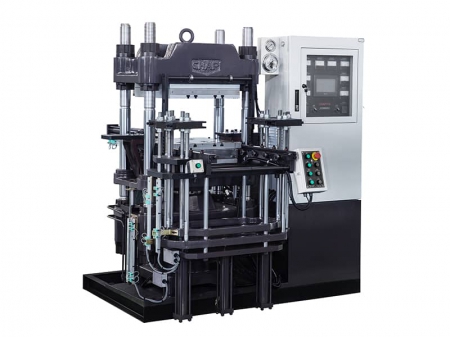

C-XLB-D700x700 3000KN Rubber Vacuum Vulcanizing Machine
Product introduction
C-XLB-D700x700/DZ3000.
Heating plate size: 650 mm×700 mm.
Clamping force: 3000 KN.
Applications
CHAP vacuum rubber vulcanizing machine is widely used in the production of rubber molded products that are of complex shapes and difficult to mold as well as rubber products that are easy to produce bubble.
- This vacuum rubber vulcanizing machine has two operation modes: manual and semi-automatic.
- This machine features a large touch screen for the display of process parameters. The screen's interface is intuitive and easy to operate, and customers can choose an Omaron or Siemens PLC system.
- Equipped with a fully enclosed safety screen and an infrared light curtain protection device, the operation safety is greatly enhanced.
- This machine's heating plate is heated using an electric heating pipe, and uses a PID closed loop control to monitor the temperature uniformity.
- This machine's opening and clamping stroke is precisely measured and controlled with the use of an inductive proximity switch. The stroke can be adjusted to multiple different speed settings.
- The vacuum storage tank uses a base type design, thus giving the equipment more storage space.
- This molding machine uses an electric hydraulic proportional hydraulic system with double power, double oil pumps and a double motor in order to achieve independent operation.
C-XLB-D700x700/DZ3000(Set) | |
Clamping force | 3000 KN |
Clamping stroke | 350 mm |
Rapid clamping speed | ≥40 mm/s |
Heating plate size | 700 mm×700 mm |
Heating plate spacing | 350~500 mm |
Max operating temperature of heating plate | 250 ℃ |
Vacuum cover stroke | 300 mm |
Max mould thickness | 290 mm |
Ejector stroke | 350 mm |
Max ejector force | 60 KN |
Motor power | (7.5+7.5)KW |
Heating power | (23.7+23.7) KW |
External dimension (LxWxH) | 4200mm×2850×(2800~3300)mm |
Oil tank capacity | 450 L |
CHAP is a primary vacuum rubber vulcanizing machine manufacturer based in China. We mainly produce rubber injection molding machine, rubber transfer molding machine, C-Frame Transfer type molding machine, plastic injection molding machine and rotary table injection molding machine. Our products are EC and CQC certified, and they are well accepted by customers from Europe, South America, Southeast Asia, East Asia, Middle East, and other regions. In addition, our location in Ningbo City, provides us with easy access to convenient transportation, which reduces our transportation cost, enabling us to offer quality products at economical prices. If you are in need of our products, please contact us. Our staff is ready and waiting to serve you.
