For large-scale projects, our large size hydraulic vibratory hammers deliver optimal performance with universal platforms, built-in oil circuits, and heavy-loading bearing design, offering a range of maximum centrifugal forces from 4185kN to 15790kN. Our hammers provide powerful piling and driving force, ideal for driving or extracting large-diameter steel tubular piles to enhance soil density and bearing capacity. These versatile hammers are your go-to choices for civil infrastructure, sea bridge, offshore wind farm, harbour, and oil platform constructions, providing reliable foundation support. With customization available for different usage scenarios, our hammers meet your requirements, driving success in every project.
Hydraulic Vibratory Hammer
Request a Quote
Hydraulic Vibratory Hammer
Large Size (Max. Centrifugal Force 15790KN)
YZ-400/YZ-400B/YZ-500B/YZ-600/YZ-800B/YZ-1600
Vibratory pile driving hammer

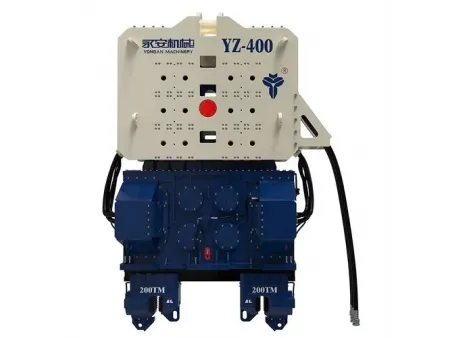

Model | YZ-400 | |
Unit | Metric | US |
Eccentric Moment | 226 kg.m | 19616 lbs.in |
Maximum Frequency | 1300 rpm | 1300 rpm |
Maximum Centrifugal Force | 4185 kN | 470 tons |
Maximum Line Pull Force | 2500 kN | 281 tons |
Maximum Amplitude | 40 mm | 1.57 in |
Maximum Oil Flow | 1300 L/min | 343 gpm |
Weight (without clamps and beam) | 18500 kg | 40785 lbs |
Dimensions (L×W×H) | 2700×1160×3980 mm | 106×45×157 in |
Recommended Power Pack | 1400P/1600P |

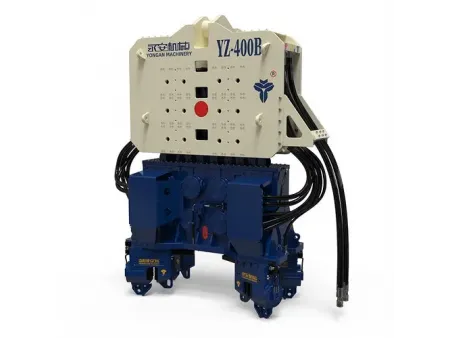

Model | YZ-400B | |
Unit | Metric | US |
Eccentric Moment | 250 kg.m | 21700 lbs.in |
Maximum Frequency | 1400 rpm | 1400 rpm |
Maximum Centrifugal Force | 4800 kN | 539 tons |
Maximum Line Pull Force | 2500 kN | 281 tons |
Maximum Amplitude | 34.5 mm | 1.36 in |
Maximum Oil Flow | 1400 L/min | 369 gpm |
Weight (without clamps and beam) | 22000 kg | 48501 lbs |
Dimensions (L×W×H) | 2960×1450×4000 mm | 117×57×157 in |
Recommended Power Pack | 1600P |

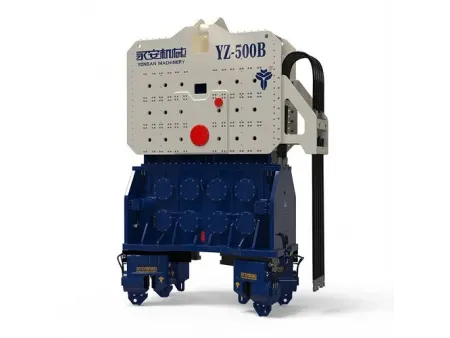

Model | YZ-500B | |
Unit | Metric | US |
Eccentric Moment | 250 kg.m | 21700 lbs.in |
Maximum Frequency | 1400 rpm | 1400 rpm |
Maximum Centrifugal Force | 5370 kN | 603 tons |
Maximum Line Pull Force | 3200 kN | 359 tons |
Maximum Amplitude | 33 mm | 1.3 in |
Maximum Oil Flow | 1600 L/min | 422 gpm |
Weight (without clamps and beam) | 24800 kg | 54675 lbs |
Dimensions (L×W×H) | 3590×1280×4180 mm | 141×50×164 in |
Recommended Power Pack | 1600P |

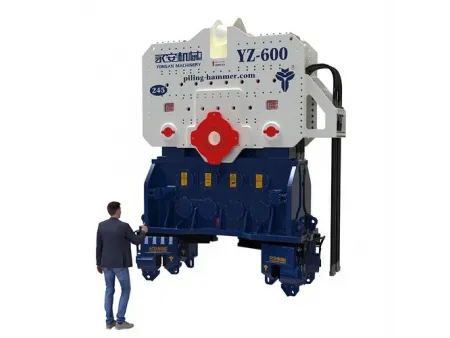

Model | YZ-600 | |
Unit | Metric | US |
Eccentric Moment | 300 kg.m | 26040 lbs.in |
Maximum Frequency | 1400 rpm | 1400 rpm |
Maximum Centrifugal Force | 6450 kN | 725 tons |
Maximum Line Pull Force | 3500 kN | 393 tons |
Maximum Amplitude | 30 mm | 1.18 in |
Maximum Oil Flow | 2400 L/min | 633 gpm |
Weight (without clamps and beam) | 35000 kg | 77162 lbs |
Dimensions (L×W×H) | 3400×1300×4200 mm | 133×51×165 in |
Recommended Power Pack | 2600P |

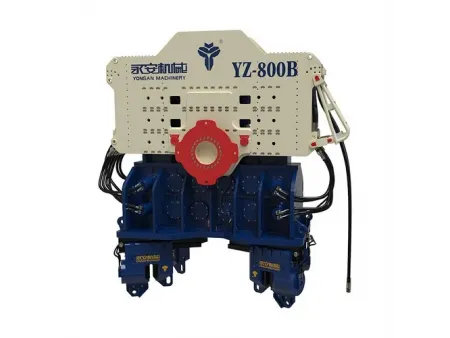

Model | YZ-800B | |
Unit | Metric | US |
Eccentric Moment | 550 kg.m | 47740 lbs.in |
Maximum Frequency | 1350 rpm | 1350 rpm |
Maximum Centrifugal Force | 11000 kN | 1236 tons |
Maximum Line Pull Force | 6000 kN | 674 tons |
Maximum Amplitude | 35 mm | 1.37 in |
Maximum Oil Flow | 3000 L/min | 791 gpm |
Weight (without clamps and beam) | 66300 kg | 146166 lbs |
Dimensions (L×W×H) | 5400×2000×4510 mm | 213×79×178 in |
Recommended Power Pack | 3500P |

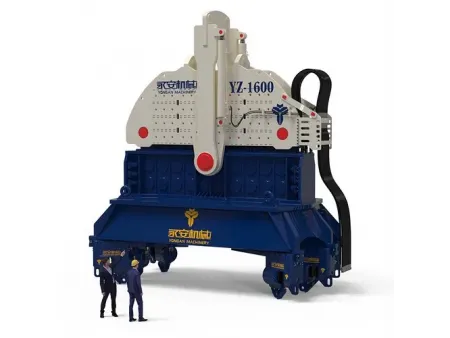

Model | YZ-1600 | |
Unit | Metric | US |
Eccentric Moment | 1000 kg.m | 86800 lbs.in |
Maximum Frequency | 1200 rpm | 1200 rpm |
Maximum Centrifugal Force | 15790 kN | 1775 tons |
Maximum Line Pull Force | 9600 kN | 1079 tons |
Maximum Amplitude | 28 mm | 1.1in |
Maximum Oil Flow | 6070 L/min | 1601 gpm |
Weight (without clamps and beam) | 135000 kg | 297624 lbs |
Dimensions (L×W×H) | 7830×1980×7420 mm | 308×80×292 in |
Recommended Power Pack | 3500P |
Mounting Options

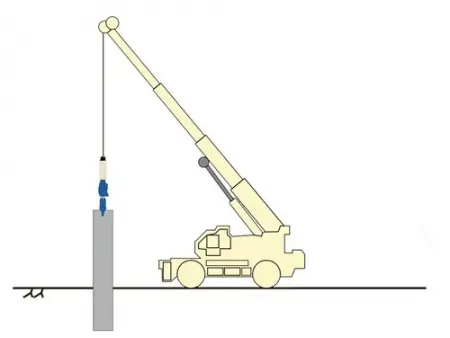

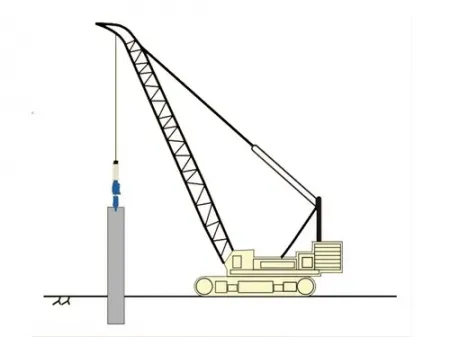

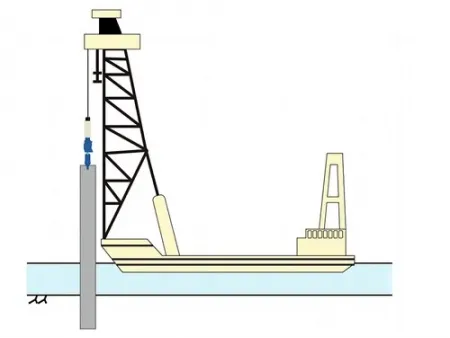

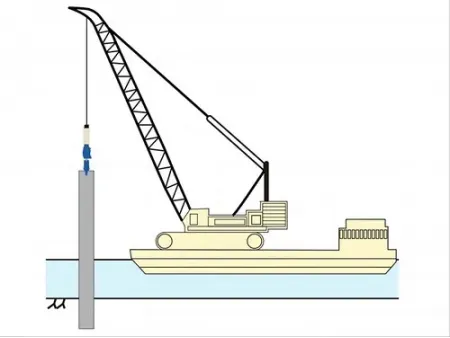

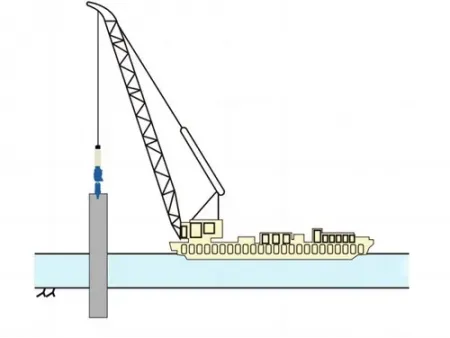

The hammers can be suspended by crawler cranes for operation.
Applications
- Civil Infrastructure Construction
- Sea Bridge Construction
- Offshore Wind Farm Construction
- Harbour Construction
- Oil Platform Construction
Suitable Pile Types
- Steel Tubular Piles

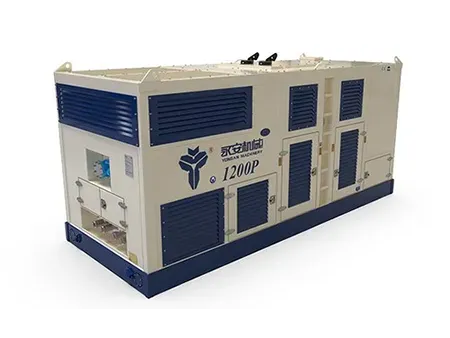

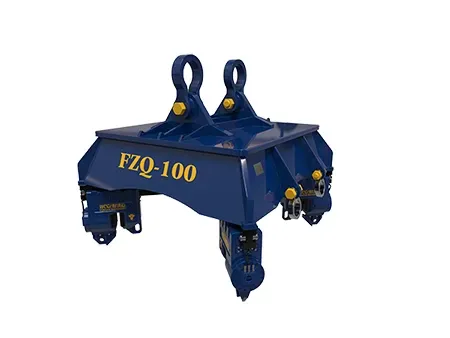

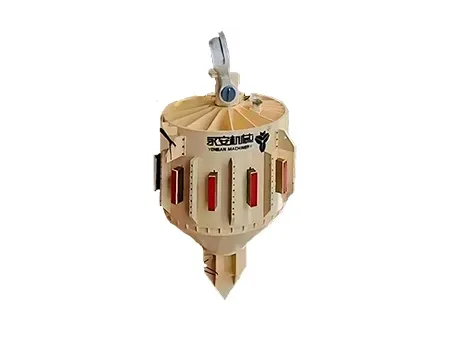

Recommended with
