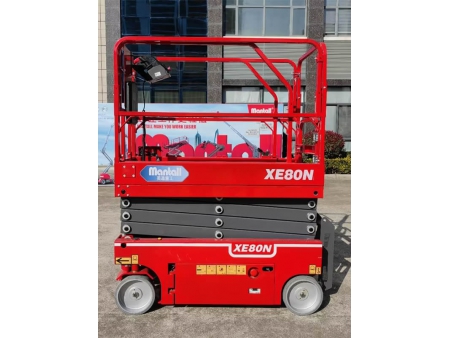

Electric Self-Propelled Scissor Lift XE-N Series
Video
Mantall XE-N series electric self-propelled scissor lifts are a type of aerial work platform with the maximum working height of 7.8m. Characterized by its 0° turning radius, this electric self-propelled scissor lift is ideal for tight spaces. This scissor lift can be widely used in various applications with low noise and no emission since it adopts battery as the power source.
Standard Features
- Manual emergency lower system
- Multi-disc wet brakes
- Manual brake release
- Pothole protection
- Non-marking tires
- AC wiring to platform
- Tilt alarm
- Buzzer
- Hour meter
- Safety brackets
- Charger indicator
- Forklift pockets
- Diagnostic system
- Extended platform
- Maintenance-free battery
- Platform swing gate
- Dual flashing beacon
- Foldable platform
Optional
- Motion alarm
- Airline to platform
- Power socket to platform
- Overload sensor
- Horn
- Platform work light
- Anti-collision system
- Top limit protection auto-stop device
Specifications
| Models | X65N | XE80N |
| Working height max H1 | 6.5 m | 7.8 m |
| Platform height max H2 | 4.5 m | 5.8 m |
| Platform height min | 0.93 m | 1.03 m |
| Platform extension size | 0.9 m | 0.9 m |
| Lifting capacity | 270 kg | 230 kg |
| Lifting capacity on the extension | 115 kg | |
| Dimension of the platform B*C*A | 1.64×0.75×1.1 m | |
| Platform length-extended K | 2.54 m | |
| Platform skirting board height L | 0.15 m | |
| Overall length and width E*F | 1.93×0.77 m | |
| Height stowed D | 2.04 m | 2.13 m |
| Height-guardrails folded M | 1.69 m | 1.78 m |
| Wheelbase G | 1.32 m | |
| Ground clearance H | 0.06 m | |
| Ground clearance-deployed potholes | 0.02 m | |
| Turning radius-inside | 0.8 m | |
| Turning radius-outside | 1.56 m | |
| Raising time/Lowering time | 11/8.5 s | 14/11 s |
| Drive speed-stowed | 3.8 km/h | |
| Drive speed-raised | 0.7 km/h | |
| Gradeability | 30% | |
| Tilt (front to back/side to side) | 3° / 2° | |
| Drive motor | Hydraulic/Electric | |
| Hydraulic tank capacity | 15 L | |
| Tire size | 356×114×254 mm | |
| Max. platform occupancy | 2 pers | |
| Power source | 4×6V/225Ah | |
| Weight(kg) ANSI/CSA Standard | 1164 kg | 1315 kg |
| CE/AUS Standard | 1235 kg | 1490 kg |
Working Heights
Stowed Dimensions
Function Description
- The metric system height is 2 meters higher than platform height, the imperial height is 6 feet than platform height
- In the rising mode, the machine is designed to operate only on a solid flat surface
- Climbing capability is suitable for driving on the slopes, refer to the operator's manual for details on slope class level
- Weight according to the opitions and standards vary from country to country.
