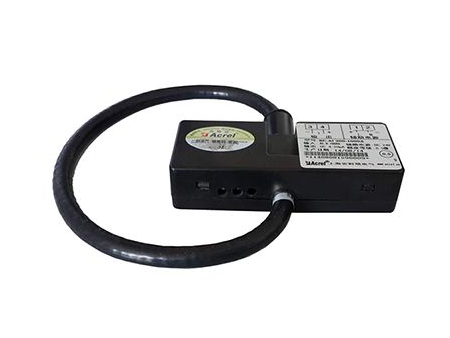

Rogowski coil, also known as flexible current transformer, is an ideal electrical device used for real-time measurement of alternating current in power grid based on the principle of electromagnetic induction. The current transformer adopts True RMS measurement and linear temperature compensation technology to provide accurate AC current measurement and convert it into a standard DC output signal that is proportional to the input current, providing DC24V safe voltage. The flexible current transformer features high accuracy, high-degree galvanic isolation, high safety and low power consumption, which is widely applied in a variety of fields such as metallurgy, electroplating, welding, etc.

Measuring
  • Rogowski coil and RMS measurement
  • Super-current measurement, direct measurement up to 30000A
  • Overload: 1.2 times of rated value
Application
  • Industrial automation
  • Metallurgical and Electroplating
Specifications
Parameter Value
Auxiliary power supply DC24V
Consumption < 1W
Length of Rogowski coil 350mm 370mm 450mm 600mm
Input Current 0 〜(200〜1000)A 0 〜(1200〜2000)A 0 〜(2500〜5000)A 0 〜(6300〜30000)A
Output Nominal value DC4-20mA
Load resistance < 5000
Accuracy Class 0.5
Response time < 500ms
Temperature Operation:-10 C 〜 55 C; Storage: -25 C 〜 70 C
Temperature coefficient < 200ppm/r
Installation Bracket
Standards GB/T 13850
