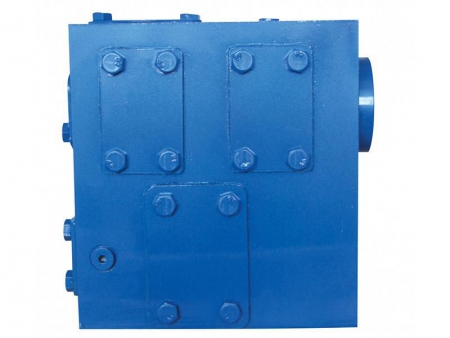

Hydraulic Check Valve
Check valve RVP comes with cone valve structure, which allows fluid to pass through it in only one direction, with adverse flow not allowed. This enables little pressure loss.
RVP is mainly used at pump ends as back pressure valve and bypass valve. It is widely seen on industrial equipment.
Main Features
1. One end of the valve is sealed tightly
2. Connected with subplate
| Dimension | 6-40 | |
| Max pressure (PMAX) | bar | 31.5 |
| Max flow | L/min | up to 600 |
How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.
| Size | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 40 |
| Max operating pressure (MPa) | 31.5 | ||||||||
| Max opening pressure (MPa) | 0.05 | ||||||||
| Hydraulic fluid | mineral oils or phosphate ester | ||||||||
| Temperature range (℃) | -30 to 80 | ||||||||
| Viscosity range (mm2/s) | 2.8 to 500 | ||||||||
| Fixing position | optional | ||||||||
After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
