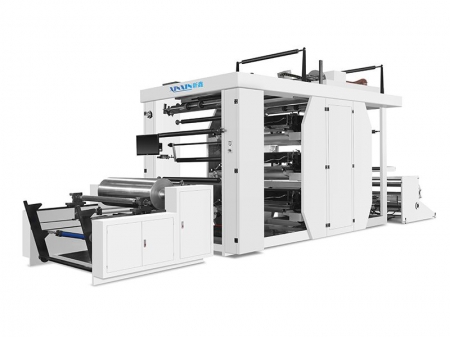

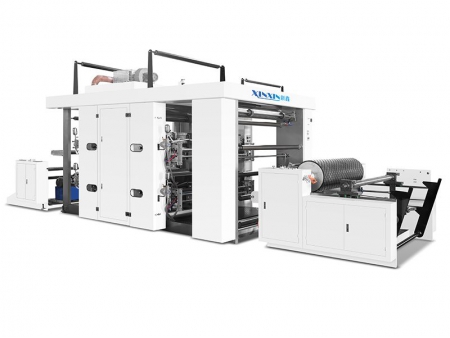

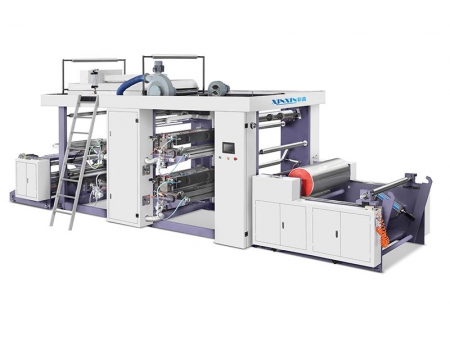

Plastic Bag Film Flexo Printing Machine

Plastic Bag Film Flexo Printing Machine
Plastic Bag Film Flexo Printing Machine
Plastic Bag Film Flexo Printing Machine
Plastic Bag Film Flexo Printing Machine
Request a Quote

Model SB66/68/610

This flexographic printing machine includes motor that drives the movement of synchronous belt, which also powers the movement of hardened gear transmission gearbox and each printing unit. The high-precision planetary gearbox features 360º plate adjustment and is used for gear transmission on the printing roller. The special printing design leaves enough time for ink to be dried.

Main Parts
  • Unwinding
    Single unwinding roll
    Hydraulic clamping
    Hydraulic gripping
    Hydraulic width adjustment of material feeding
    Automatic tension control for magnetic powder brake
    Optical control for overfeeding correction
  • Control
    Motor frequency converter
    PLC touch screen
    Geared motor for driving 6 sets of ink supply system
  • Printing
    Pneumatically operated lifting and lowing of printing plate cylinders
    Automatic lifting plate cylinder after the printing machine stops; automatic ink supply starts simultaneously
    Starts auto lowering plate printing cylinder to be ready for printing when the machine operates with an alarm
    Inking with ceramic anilox chambered doctor blade, ink pumping system for circulating
    Precise registration is achieved through a synchronized motor for continuous vertical registration with an accuracy of up to ±0.15mm
    Horizontal registration can be adjusted within ±0.2mm
    Manual adjustment of inking pressure and printing pressure to achieve optimal printing results
  • Rewinding
    Friction rewinding
    Pneumatic tension control
    2.2 kW motor with vector control frequency converter
    3-inch air expanding shaft
    Hydraulic unloading of materials
  • Drying
    External heating tubes for heat generation Temperature display Automatic current control system Centrifugal blower for air supply
Specifications
Model YSB6-1400 YSB6-1300 YSB6-1200 YSB6-1000 YSB6-800
Max. material printing width 1400mm 1300mm 1200mm 1000mm 800mm
Max. printing width 1360mm 1260mm 1160mm 960mm 760mm
Max. unwinding diameter 1300mm 1300mm 1300mm 1300mm 1300mm
Max. rewinding diameter 1300mm 1300mm 1300mm 1300mm 1300mm
Printing length range 230-1000mm 230-1000mm 230-1000mm 230-1000mm 230-1000mm
Printing speed 5-100m∕min 5-100m∕min 5-100m∕min 5-100m∕min 5-100m∕min
Register precision ≤±0.15mm ≤±0.15mm ≤±0.15mm ≤±0.15mm ≤±0.15mm
Thickness of plate(including the thickness of double-sided glue) 2.28mm 0.38 2.28mm 0.38 2.28mm 0.38 2.28mm 0.38 2.28mm 0.38

As a plastic bag film flexographic printing machine manufacturer based in China, we also provide label PS offset printing machine, automatic swing cylinder screen printing machine, label slitting machine, and much more.

At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
