• The film pulling is controlled by the servo motor, which keeps film tension stable. This results in smooth operation and high speed during bag forming.
• The cylinder from the well-known brand ensures good sealing and smooth seal, preventing bags from leakage. This significantly improves qualification rate.
• The vertical form fill seal machine comes with PLC control system, high performance driver, touch screen, HMI interface, high levels of automation, easy operation, etc.
• The VFFS packaging machine is equipped with multi-language operating system.

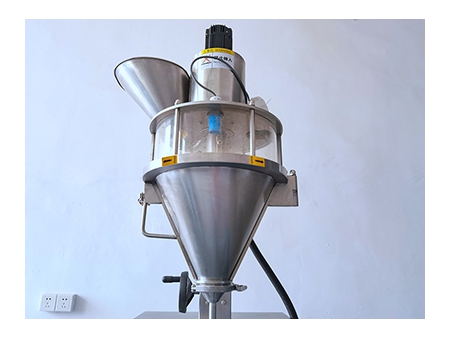

The products are measured by the screw rotation numbers, which are fast and precise with an error range within ±1g. The capacity varies from 30 to 50L depending on the machine type.

The color code photo eye and the transport system are sensitive to the materials so that they can be filled and supplemented in time. The open-type feeding hopper is easy to clean.

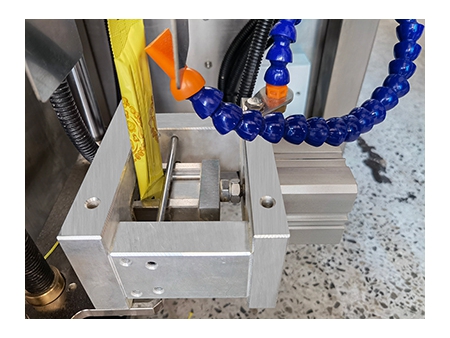

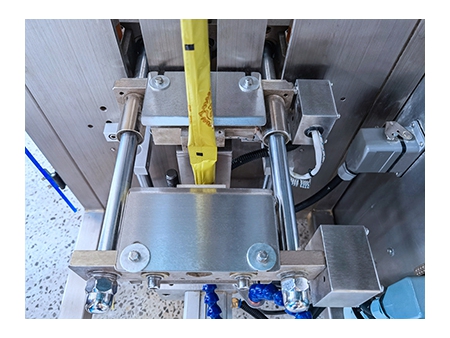

The packaging machine is controlled by Panasonic servo motor and reciprocating film drawing structure. The SMC/Airtac air cylinder helps to improve bag sealing property and reduce failure rate.

External film unwind apparatus simplifies film changeover. Standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.

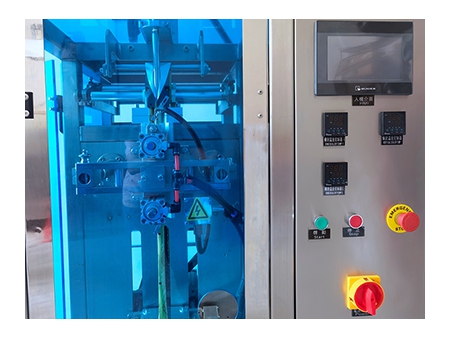

PLC control, Panoramic driver and Wienview touch screen feature simple operations and are sensitive to touch. The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, etc.

Products are conveyed by screws and the hopper can vibrate to prevent materials build-up. After receiving the signal from color code induction system, the material will be fed automatically, making it easy to operate and control.

The feeding process is totally sealed to minimize dust output. The capacity of the vibrating hopper is 80-150L and the diameter of the feeding tube is 100-114mm, which vary among different machine models.

The finished bags are conveyed to the platform by screws, which are driven by micro motors. The conveying capacity is up to 60-80 bags per minute with higher smoothness and lower noise.

The conveyor belt can be customized to fit your specific requirements. For example, PVC belt, stainless steel chain conveyor or PVC chain conveyor is optional based on the characteristics of product materials.

If you want to know more about this VFFS machine, don't hesitate to contact us!
