Cummins Engine Series

Powered by Cummins diesel engine

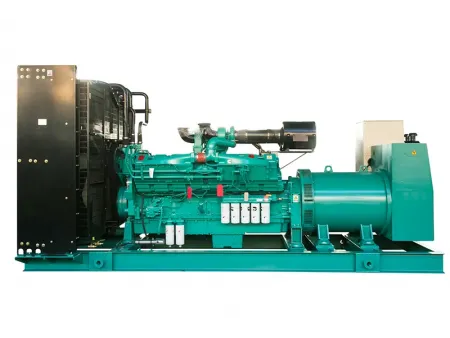

Our Cummins engine series diesel generator sets are renowned for their advanced technology and reliable performance, operating effectively in extreme conditions from frigid cold to the intense heat of Middle Eastern and African deserts, and high altitudes like the Qinghai-Tibet Plateau. Here are the specifications for the 1000-1600KW Cummins engine series diesel generator sets.

1000kW/1250kVA

Diesel Generator Set with Cummins Engine, DB-1000GF

  • Prime power: 1000kW/1250kVA
  • Standby power: 1100kW/1375kVA
  • Rated current: 1800A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Cummins KTA50-G3
  • Alternator: Stamford/Leroy Somer/Engga (optional)

1100kW/1375kVA

Diesel Generator Set with Cummins Engine, DB-1100GF

  • Prime power: 1100kW/1375kVA
  • Standby power: 1320kW/1650kVA
  • Rated current: 1980A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Cummins KTA50-G8
  • Alternator: Stamford/Leroy Somer/Engga (optional)

1200kW/1500kVA

Diesel Generator Set with Cummins Engine, DB-1200GF

  • Prime power: 1200kW/1500kVA
  • Standby power: 1320kW/1650kVA
  • Rated current: 2160A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Cummins KTA50-GS8
  • Alternator: Stamford/Leroy Somer/Engga (optional)

1340kW/1675kVA

Diesel Generator Set with Cummins Engine, DB-1340GF

  • Prime power: 1340kW/1675kVA
  • Standby power: 1500kW/1875kVA
  • Rated current: 2412A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Cummins KTA50-G15X
  • Alternator: Stamford/Leroy Somer/Engga (optional)

1500kW/1875kVA

Diesel Generator Set with Cummins Engine, DB-1500GF

  • Prime power: 1500kW/1875kVA
  • Standby power: 1600kW/2000kVA
  • Rated current: 2700A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Cummins KTA50-G16A
  • Alternator: Stamford/Leroy Somer/Engga (optional)

1600kW/2000kVA

Diesel Generator Set with Cummins Engine, DB-1600GF

  • Prime power: 1600kW/2000kVA
  • Standby power: 1600kW/2000kVA
  • Rated current: 2880A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Cummins KTA50-G16A
  • Alternator: Stamford/Leroy Somer/Engga (optional)
Speed: 1500rpmCylinders No. & Type: 16 cylinders, V-type 4 stroke, diesel engine, water-cooled
