Applications
- Welding equipment for minor construction projects
- Home decoration industry welding machine
- Welding equipment for farm and ranch
- Portable welder for repairs and home DIY

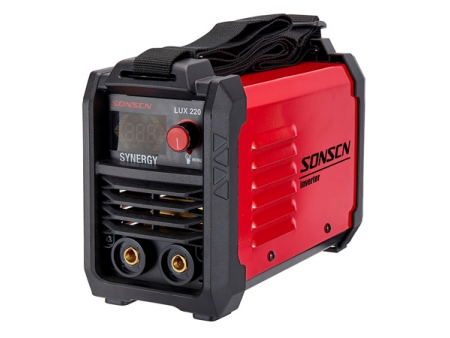

MMA Welder Type: L
Request a Quote
- User-friendly interface: the intelligent LED screen provides you with accurate data display, like current and Electrode Diameter, helps you read it easier and more clearly.
- Advanced IGBT inverter & MCU digital control: provides stable performance, reliability and high consistency.
- Portable & lightweight: this welder is easy to operate and carry.
- Wide range of input voltages: 155-265V (1ph) 50/60HZ.
- Generator compatible: The MMA welder type L will be able to operate when powered by a generator.
| Model | Power Voltage | No-load Voltage | Efficiency | Rated Input Power | Output Current Range | Duty Cycle | Electrode Diameter | Weight | Dimension |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 5.5KVA | 10-120A | 60% | 1.5-3.2mm(1/8") | 3.0kg | 28*12.5*19cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.1KVA | 10-140A | 60% | 1.5-3.2mm(1/8") | 3.2kg | 28*12.5*19cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.9KVA | 10-160A | 60% | 1.5-4.0mm(5/32") | 3.8kg | 31*13.5*20cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 8.2KVA | 10-180A | 60% | 1.5-5.0mm(3/16") | 4.2kg | 31*13.5*20cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 9.6KVA | 10-200A | 60% | 1.5-5.0mm(3/16") | 4.5kg | 31*13.5*20cm |
Features

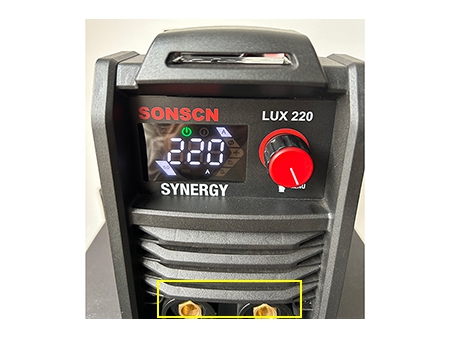

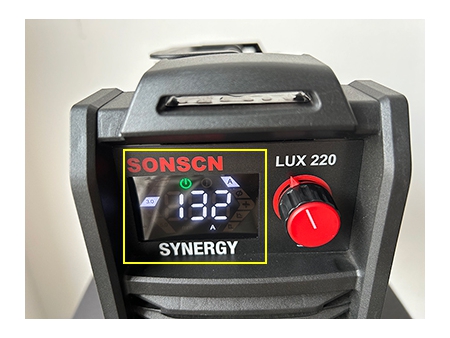

- User-friendly interface
The intelligent LED screen provides you with accurate data display, like current and Electrode Diameter, helps you read it easier and more clearly.
- Advanced IGBT inverter &MCU digital control
Provides stable performance, reliability and high consistency.
- Portable & lightweight
This welder is easy to operate and carry.
- Wide range of input voltages
155-265V (1ph) 50/60HZ.
- Generator compatible
The MMA welder type L will be able to operate when powered by a generator.
- Premium welding performance
Support welding rods with a maximum diameter of 1.6mm (1/16") or 5.0mm(3/16"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on various types of welding rods, such as E7018, E6010, E6011, E6013, E308, etc.
- Hot start
Provides very easy, quick and reliable arc starts upon contact with the workpiece.
- Anti-stick
Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.
- Built-in arc force
Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.
- Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
- Lift TIG capabilities
Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.
- Optional sizes come with
28*13.3*19cm or 31.5*13.3*22cm.
Standard Accessories
- Electrode holder with cable

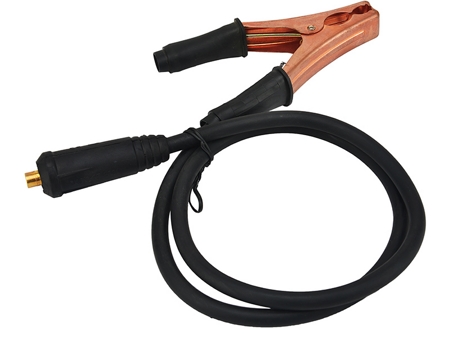

- Earth clamp with cable
Optional Accessories
- Plastic tool box
- Welding mask
- Wire brush
FAQs
The MMA Welder Type L comes with a single-phase 230V±10% V, 50/60 Hz power source. If you have any requirements on power source, please contact us.
MMA Welder Type L is suitable for various types of welding rods such as E7018, E6010, E6011, E6013, E308, and more.
MMA Welder Type L is a versatile welding machine, and it handle stainless steel, iron, steel, alloy steel, and other materials.
MMA Welder Type L has a multifunctional display screen that allows real-time monitoring of current and voltage information. It is highly adaptable and can be used for welding various materials.
Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.
If you have any questions about our welders, please email us or give us a call.
