NNC67G Miniature Electromagnetic Relay

Request a Quote

View All: http://electrical-relay.com/2018/1-1-6-nnc67g-miniature-electromagnetic-relay.html

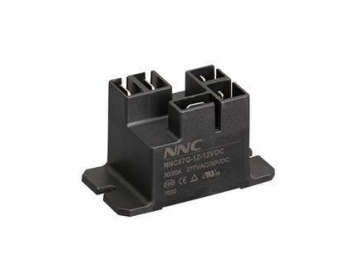

NNC67G;T92-1H Low

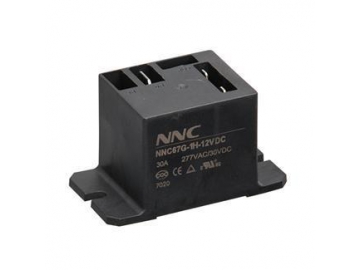

NNC67G;T92-1H Tall
NNC67G;T92-1Z

The NNC67G miniature electromagnetic relay can be applied to household appliances,PCB circuit board, industrial control system and automatic control system, etc.

Features

High power capacity contact: 30A 40A
The NNC67G miniature electromagnetic relay has plug-in installation mode and flange installation mode.

Identification

CQC:CQC14002106906
CE:5398080516
TUV:R50301238
UL:E235027

Model explanation

Contact parameters

Contact form	1Z,1H,1D
Contact load	30A	40A
Maximum switching voltage	277VAC 30A 30VDC 30A	277VAC 40A 30VDC 40A
Contact material	Silver alloy

Relay coil

Rated voltage V	DC6V	DC12V	DC24V	DC48V
Rated current (±10%) mA	155	77.5	38.7	19.3
Coil resistance (±10%) Ω	39	155	620	2487
Rated power consumption W	0.93W
)Pull-in voltage (Maximum) V	Below 75%
Drop-out voltage(Minimum) V	Above10%
Allowable voltage(Maximum) V	Rated voltage×110%
Rated voltage V	AC12V	AC24V	AC110V	AC220V
Rated current (±10%) mA	100	50	11	5.5
Coil resistance (±10%) Ω	42	168	3500	14000
Rated power consumption W	1.2VA
)Pull-in voltage (Maximum) V	Below80%
Drop-out voltage(Minimum) V	Above30%
Allowable voltage(Maximum) V	Rated voltage×110%

Specification of NNC67G miniature electromagnetic relay

Coil voltage		DC3V-110V, AC6V-240V
Pull-in time		≤10ms
Drop-out time		≤5ms
Withstand voltage	Between the homopolar contacts	1800VAC/1min(Leakage current 1mA)
	Between the heteropolar contacts	/
	Between contactsand coil	2500,4500 VAC/1min(Leakage current 1mA)
Dimension		32.5× 27.5 × 20 mm
		50.2× 27.5 × 20mm
Weight		About 30g

Dimension and installation

① Front view; ② Side view; ③ Installation size; ④ Wiring diagram
