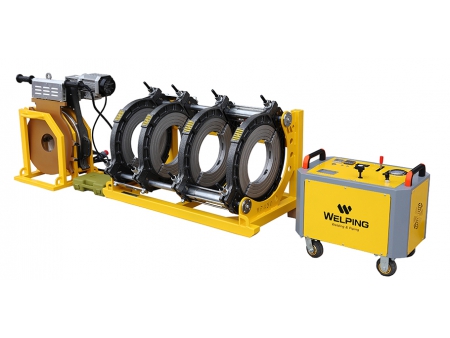

Hydraulic Butt Fusion Machine, WP450A
180mm-450mm Plastic Pipe Welding Machine
The butt fusion welding machine is hydraulically operated forbutt fusion joining of HDPE, PP, PVDF, MPP pipes and fittings.
- Model: WP450A
- Welding range: 180-450 mm
- Applicable pipe diameters: 180-200-225-250-280-315-355-400-450 mm
- Power supply: 380 V/50Hz, 3PH
- Total power: 8.7 kW
- Heating plate: 6.5 kW
- Planing tool: 1.1 kW
- Hydraulic station: 1.1 kW
- Pressure adjusting range: 0-10.0 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±7 ºC
WP450A hydraulic butt fusion machine is ideal for welding HDPE, PP, PVDF, MPP pipes.
-
-
-

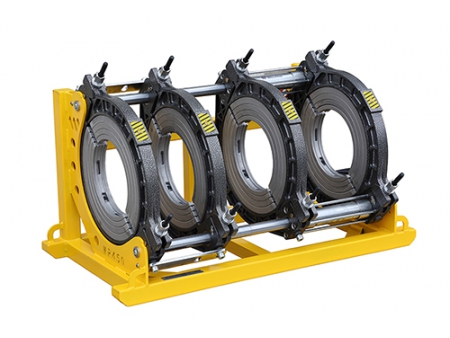

The butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.
-
-
-
Steel plates of the machine frame are produced with high precision and aesthetic appearance after processed by the precise and powerful laser cutter.
-
-
-

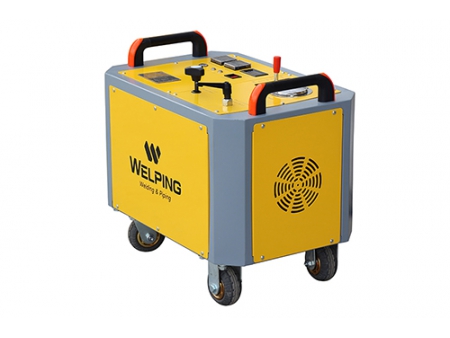

The hydraulic station is designed with an enclosed structure to prevent dirt or water. LCD display panel and data logging device are optional upon request.
-
-
-

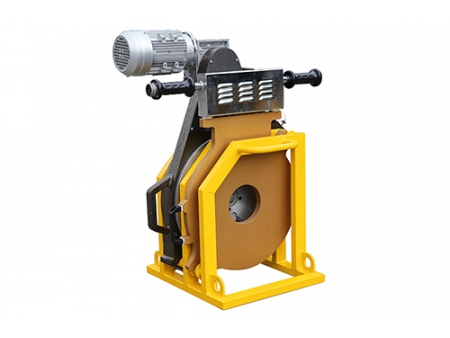

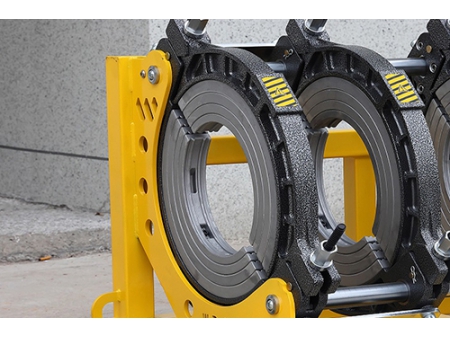

The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.
-
-
-

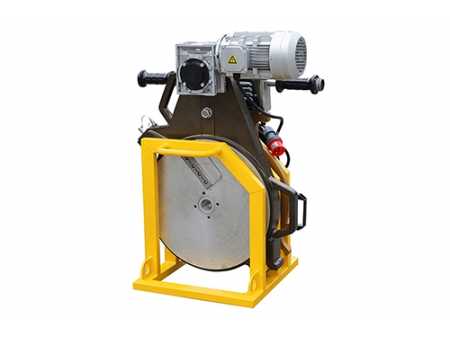

The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.
