LYS -72HLM Half Cut Mono Solar Panel
Request a Quote
Features
- 144 half-cells monocrystalline module
- Front tempered glass
- TPT back sheet
- Size: 2094*1038*35mm
- Max. Module efficiency: 20.7%
- Aluminum alloy frame
Description

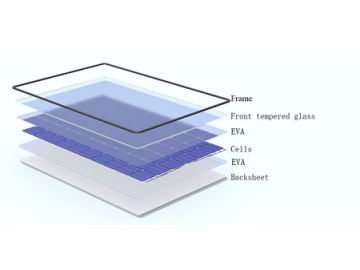

This 144 half-cell single glass monocrystalline photovoltaic module delivers excellent durability and reliability. The front panel features extra clear tempered glass, enhancing its solar transmittance for improved solar energy conversion. Its performance and durability are consistent and the rear uses a TPT back sheet as well as.
Technical Parameters
| Mechanical Parameters | |
| Length | 2094mm |
| Width | 1038mm |
| Weight | 22.7kg |
| Thickness | 35mm |
| Area | 2.17m2 |
| Individual leadwire | 4mm2 |
| Connectors | MC4/MC4 equivalent |
| Junction Box | IP68 |
| Cell type | Monocrystalline cell |
| Frame material | Aluminum alloy |
| Front glass | Extra clear tempered glass，3.2mm |
| Encapsulation | EVA |
| Load rating | Static: 5400Pa Wind: 2400Pa |
Module numbers and ratings at standard test conditions(1000W/m2, AM 1.5, 25°C)
| Nominal values | 440 | 445 | 450 | |
| Nominal power (-0/ 5W) | PMPP (W) | 440 | 445 | 450 |
| Voltage at Pmax | VMPP (V) | 41 | 41.2 | 41.26 |
| Current at Pmax | IMPP (A) | 10.73 | 10.8 | 10.91 |
| Open circuit voltage | VOC (V) | 49.2 | 49.4 | 49.85 |
| Short circuit current | ISC (A) | 11.45 | 11.52 | 12.24 |
| Module efficiency | % | 20.2 | 20.5 | 20.7 |
| Operation temperature | ℃ | -40~ 85 | -40~ 85 | -40~ 85 |
| Maximum system voltage | VSYS (V) | 1500 | 1500 | 1500 |
| Maximum series fuse | ICF (A) | 20A | 20A | 20A |
