SUPREME Portable X-Ray Machine

Request a Quote

View All: http://medimaging-en.com/1-1-8-supreme-portable-x-ray-machine.html

SHO-PXS Medical Imaging

Portable digital radiography unit with luxury mobile trolley

The SUPREME portable X-ray machine is our flagship radiographic equipment, designed for efficiency and ease of use. Offering 5kW, 5.6kW, and 8kW power options, it features an 18.5-inch large color touchscreen with an integrated computer, eliminating the need for a separate laptop for image display.

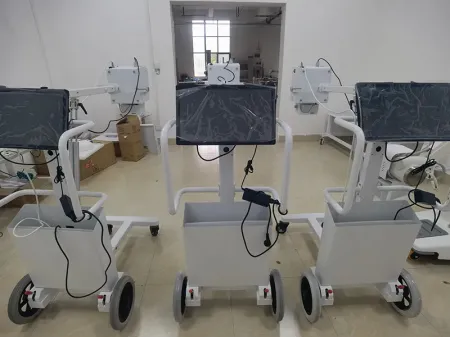

For enhanced convenience, this portable X-ray machine includes a luxury adjustable trolley with a flat panel detector storage compartment and a 17-inch × 17-inch wired flat panel detector. You can easily control exposures using the wired hand switch, wireless remote, or the touchscreen exposure button.

Specifications

Model	SHO-PXS01	SHO-PXS02	SHO-PXS03
Power (kW)	5	5.6 (with battery)	8
High voltage Generator
kV Range (kV)	40-110	40-125	40-125
mAs range (mAs)	0.2-200	0.1-200	0.1-200
mA range (mA)	20-100	10-100	10-100
Working frequency (kHz)	≥40
Communication mode	RS232
Exposure time (s)	0.01-4
Exposure mode	Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat storage (kHU)	56
Focal spot (mm)	1.8
Anode Angle (°C)	15
Collimator
Power supply	AC/DC 24 V±10%
Light type	5W LED
Light delay time (s)	30±2
Illumination	≥160 Lux
Inherent filtration	1.2mmAL@75 kV
Dimension
Main head unit (L×W×H)(mm)	290×265×230	425×240×220	425×240×220
Net weight(kg)	19	18	18
Head screen	10.4-inch LCD color touch screen
Trolley height adjustable range	515-1810 mm (from spot to floor)

Flat panel detector

Model: Venu1717X (Iray brand)
Dimension (L×W×H): 460×460×15mm
X-ray Energy: 40-150kV
Scintillator: CsI:Tl
Pixel Size: 139um
Fill Factor: 70%
Effective Array: 3072×3072
Effective Area (H×V): 427×427mm
Spatial Resolution: Min. 3.4 lp/mm
Image Transfer: Gigabit Ethernet

Working station (Console)

Brand: Dell
Model: Vos15-3520
Processor: Smart Intel ® Core ™ i5-1135
Operating system: Windows 11 Home
Graphics Card: Intel ® UHD graphics
Card Memory: 32 GB DDR4
Storage: 512 GB SSD
Display size 15.6-inch screen Full HD (1920×1080)
Net weight: 1.69kg
Thickness: 16.96mm

X-Ray Imaging

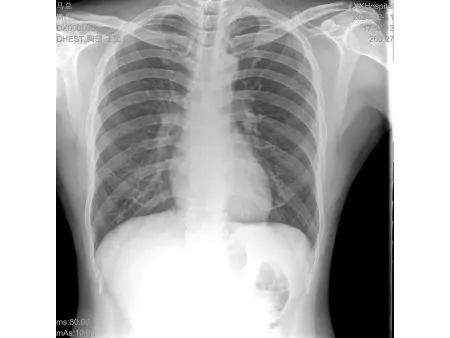

Chest radiograph

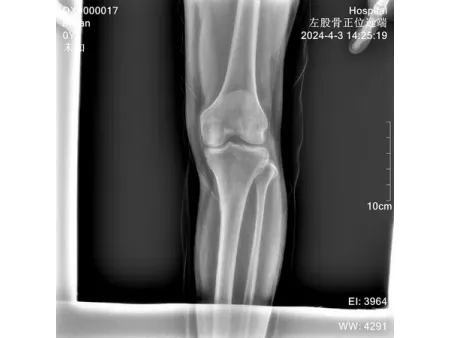

Limb radiograph

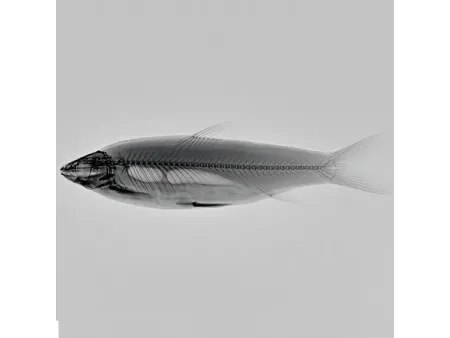

Veterinary radiograph

Applications

The SUPREME portable X-ray machine is utilized in a variety of medical and veterinary fields, including:

Emergency room
Orthopedics
Physical examination
Field training
Operating room
ICU
Ambulance
Animal husbandry
Sports medicine
Nursing home
Rural medical visits
Pet hospital

Looking for a high-performance portable X-ray machine with an all-in-one design? Contact us today!
