SHO-PX Medical Imaging

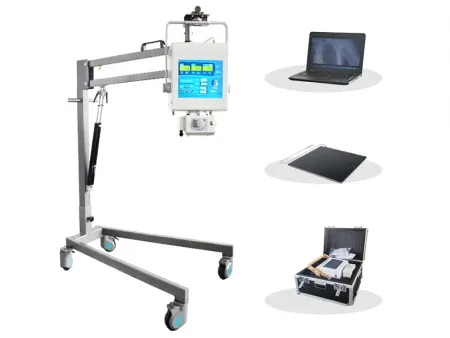

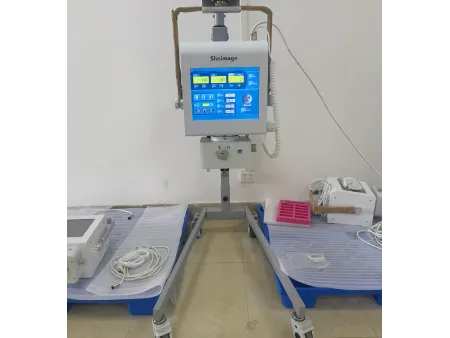

Portable digital radiography unit with adjustable mobile trolley

The BASIC portable X-ray machine is our standard portable X-ray apparatus, offering multiple power options (5kW, 5.6kW, and 8kW) to suit your imaging needs. Designed for ease of use and flexibility, it features a 10.4-inch color touchscreen, an adjustable mobile trolley, a 17-inch × 17-inch wired flat panel detector, and a 15.6-inch Dell laptop for seamless operation.

With three exposure control options, wired hand switch, wireless remote, and on-screen exposure button, you get the convenience and precision needed for efficient imaging.

Specifications

Model	SHO-PX01	SHO-PX02	SHO-PX03
Power (kW)	5	5.6(with battery)	8
High voltage Generator
kV Range (kV)	40-110	40-125	40-125
mAs range (mAs)	0.2-200	0.1-200	0.1-200
mA range (mA)	20-100	10-100	10-100
Working frequency	≥40kHz
Communication mode	RS232
Exposure time (s)	0.01-4
Exposure mode	Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat storage	56kHU
Focal spot (mm)	1.8
Anode Angle (°C)	15
Collimator
Power supply	AC/DC 24V±10%
Light type	LED 5W
Light delay time (s)	30±2
Illumination	≥160Lux
Inherent filtration	1.2mmAL@75kV
Dimension
Main head unit (L×W×H) (mm)	290×265×230	425×240×220	425×240×220
Net weight(kg)	19	18	18

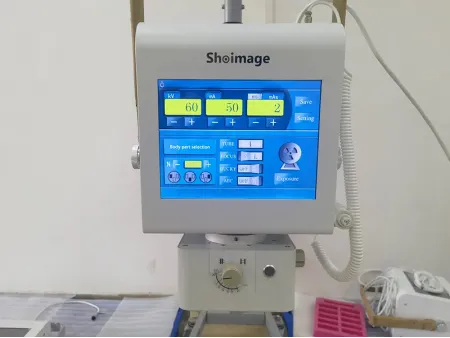

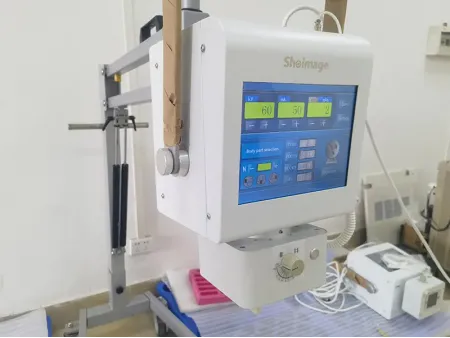

Head screen	10.4-inch LCD color touch screen
Trolley height adjustable range	515-1810mm (from spot to floor)

Flat panel detector

Model: Venu1717X (Iray brand)
Dimension (L×W×H): 460×460×15mm
X-ray Energy: 40-150kV
Scintillator: CsI:Tl
Pixel Size: 139um
Fill Factor: 70%
Effective Array: 3072×3072
Effective Area (H×V): 427×427mm
Spatial Resolution: Min. 3.4 lp/mm
Image Transfer: Gigabit Ethernet

Working station (Console)

rand: Dell
Model: Vos15-3520
Processor: Smart Intel ® Core ™ i5-1135
Operating system: Windows 11 Home
Graphics Card: Intel ® UHD graphics
Card Memory: 32 GB DDR4
Storage: 512 GB SSD
Display size 15.6-inch screen Full HD (1920×1080)
Net weight: 1.69kg
Thickness: 16.96mm

X-Ray Imaging

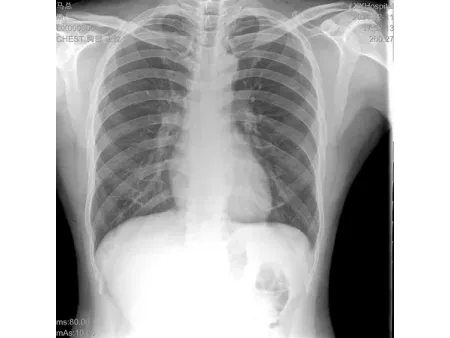

Chest radiograph

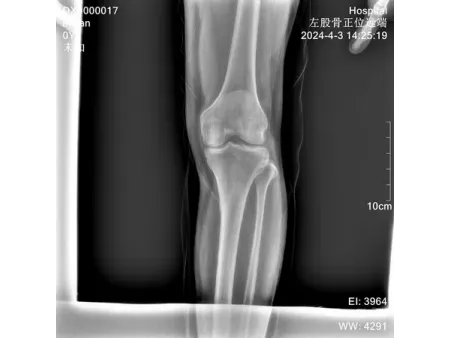

Limb radiograph

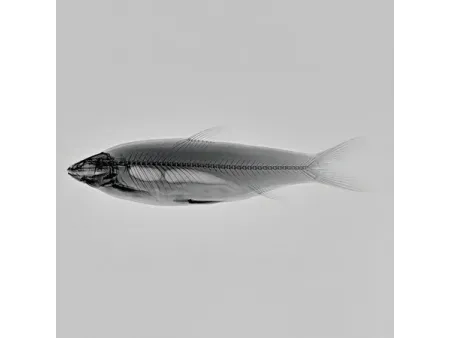

Veterinary radiograph

Applications

The following are the diverse applications of the BASIC portable X-ray machine across various medical and veterinary fields:

Emergency room
Orthopedics
Physical examination
Field training
Operating room
ICU
Ambulance
Animal husbandry
Sports medicine
Nursing home
Rural medical visits
Pet hospital

Looking for a versatile, portable X-ray machine? Contact us today to learn more about this radiographic equipment!
