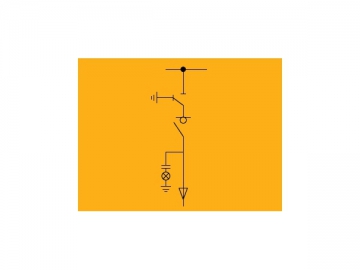

C Module-Load Switch
As a module of the solid insulated RMU, our C module-load switch has many optional accessories in addition to the standard configurations.
Standard Configurations and Features
1. 630A busbar
2. Two separate operation holes for load switch and earthing switch
3. Switch position indicators are available for the load switch and earthing switch.
4. The outgoing bushing is located at the front horizontally. The 630A screw type bushing is available in European type and American type.
5. The voltage indicator integrated with phase concordance testing function is in accordance with ISO61958 standard.
6. The switch control panel of our C module-load switch are able to be padlocked.
7. Earthing busbar
8. Interlocking functions
Optional Accessories and Features
1. Extensible busbar
2. Motor Operation (24V/48V DC, 110V/220V DC/AC)
3. Short-circuit and earth-fault indicator
4. Bushing type CT and ampere meter and power meter
5. Electric lock for earthing switch (when the incoming line is energized, the earthing switch will be locked up to prevent fault operations)
6. Auxiliary contacts
Load switch position 4NO 4NC(maximum)
Earthing switch position 4NO 4NC(maximum)
7. Double cable connector and YH5WS zinc oxide arrester is available aroud the bushing of the incoming line of the cable
8. The secondary devices of the C module-load switch can be mounted in the control box at the top of the switch cabinet.
