Centrifugal Compressor

Request a Quote

View All: http://xinrancompressor.com/1-1-centrifugal-compressor.html

Air Compressor

Industrial air compressor

The air pressure in the centrifugal compressor is increased with the help of the rotation of impeller and the diffusion of diffuser. According to the exhaust pressure, the centrifugal compressors can be divided into the following three types:

Centrifugal fan: wind pressure lower than 15kPa
Centrifugal blower: wind pressure between 15~350kPa
Centrifugal compressor: wind pressure higher than 350kPa

Free air delivery
40-400m³/min
Pressure
0.3-25bar
Adjustment range
65％ to 105％

Technical Data

Model	Pressure (bar)	Free Air Delivery (m³/min)	Power (kW)	Dimensions			Weight (kg)
				L(mm)	W(mm)	H(mm)
XRT	4-9	50-45	110-240	3000	1850	2450	4000
XRO	1.5-4	40-95	140-250	2800	1800	1800	4200
XRJ	4-9	45-90	280-500	3100	2000	2450	6500
XRL	2-12	40-105	220-500	3300	2000	2450	8500
XRV	2-25	80-220	300-1200	4300	2100	2700	10000
XRC	2-25	220-400	1050-2000	4500	2250	2700	16500

Application

Xinran has designed and developed a series of high performance centrifugal compressors of medium and high pressure for oil, chemical fertilizer, textile, steel industries and power plants. Meanwhile, Xinran attaches great importance to the technology introduction to enhance its R&D, design and manufacturing abilities.

We believe that Xinran centrifugal compressors will be widely used in plastic, fiber, rubber, textile, steel, power plants, mines, coal and other industries. During the production of any basic raw materials, centrifugal compressor always plays an important role. So the quality and development of centrifugal compressor directly affects and determines the industry development of a country.

Compared to ordinary piston compressors and screw compressors, Xinran compressors mainly have the following advantages:

Large air volume, simple and compact structure, light weight, small size and small space.
Good running balance, reliable operation, high running rate, few friction parts, few spare parts, low maintenance costs and few operators needed.
In the chemical process, Xinran centrifugal compressor can realize an oil-free compression process.
As a machine that dose rotary motion, Xinran centrifugal compressor is suitable for being dragged by industrial steam turbine or gas turbine. In large chemical factory, by-product steam are usually used for driving industrial turbine, which provides the possibility of comprehensive utilization of energy.

Xinran – Guide of Technological Development

High Efficiency
With aerodynamic design, standard guide vanes, intercooler, backward inclined impellers, the compressor still maintains high efficiency when running in partial load, and minimizes the times of loading and unloading. The finned heat exchanger has a high cooling efficiency with low pressure loss. The water flows in pipes, while gas flows in the shell to reduce the maintenance cost.
Good Maintainability
The horizontal gear box facilitates the maintenance of bearings, gears, sealing element and the rotor. The cooling water flows in pipes to shorten the downtime to a minimum. When overhauling, there is no need to dismantle the pipeline. The screw tail cone pin enables convenient assembly and replacement. The intercooler is easy to clean, inspect and maintain.
Simple and Perfect Parts
The bearing runs stably in high speed. It should be aligned to ensure excellent anti-vibration and cooling effects. The using of gas seal, oil seal and other seals significantly reduces production and maintenance costs.
User-friendly Control Interface
The automatic control system achieves safe and trouble free operation, surveillance and linkage control of multiple machines. With self-diagnostic function, the control system has a swift response to self-inspection. The large touch screen enables easy monitoring and simple maintenance.

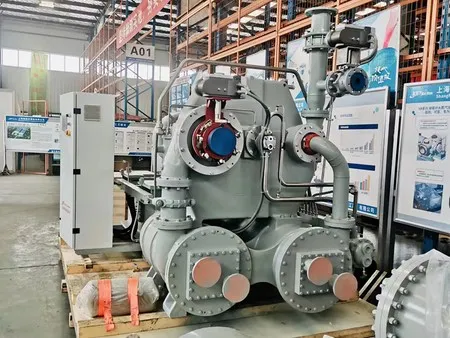

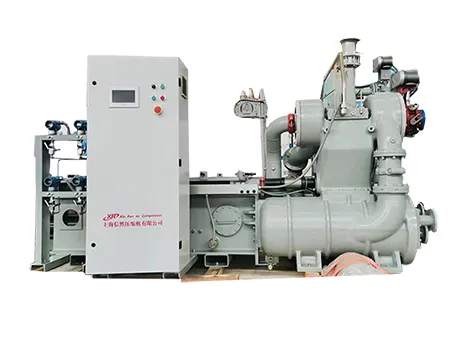

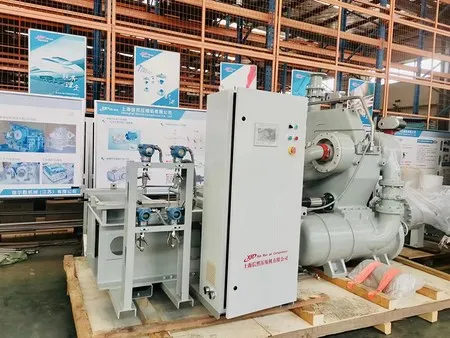

Centrifugal compressor designed by Shanghai Xinran Compressor Co., Ltd. is driven by motor to meet the technological requirements of customers. It can provide 100% oil-free compressed air.
Operating Principle of Centrifugal Compressor
The air enters into the compressor through the regulating valve on the inlet. The impellers rotate in high speed to accelerate the air. Then the air enters into the diffuser, meanwhile the velocity is converted into pressure and heat. Finally, the air enters into the air cooler.
Such a process is repeated until the required pressure is reached.

The compressor unit includes: air system, lubricating system, drive system, control system equipment and other optional devices.
The air system mainly includes: the nose section and accessories.
