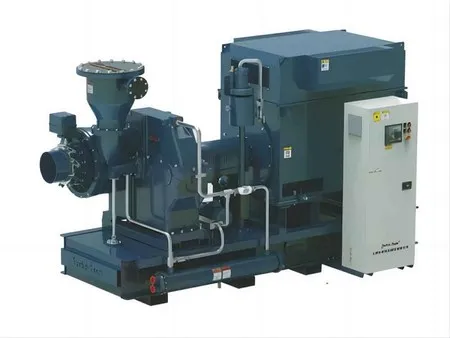

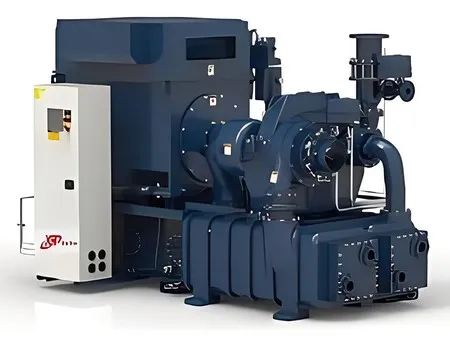

Multistage Centrifugal Blower
Request a Quote
Industrial Blower
This centrifugal blower provides high efficiency, low noise level, uniform pressure and pulse-free flow operation. It supplies dry, clean and oil free air, and less wearing parts mean this blower is easy to operate and virtually maintenance free.
- Volume flow
15-500m³/min
- Pressure
10-100kPa
- Temperature
-35-40℃
Multistage centrifugal blower is widely used across various industrial applications that require efficient air delivery. Key applications include supplying blast air to high furnaces and iron-making furnaces in smelting operations, supporting dry jigging of coal, aiding in mineral flotation processes, aerating wastewater in sewage treatment, and generating gas in chemical production. This industrial blower is also capable of conveying other special gases.
Technical Data| Model | Type | Power (HP) | Flow (m³/min) | Pressure (mmAq) | Outlet Aperture | Size (mm) | Weight (kg) | ||
| W | L | H | |||||||
| | Single | 30 | 20 | 6,000 | 150 | 700 | 1,600 | 1,350 | 530 |
| | 17 | 8,000 | 150 | ||||||
| | Single | 50 | 34 | 6,000 | 150 | 700 | 1,600 | 1,350 | 530 |
| | 28 | 8,000 | 150 | ||||||
| | Single | 75 | 75 | 4,000 | 200 | 850 | 1,750 | 1,550 | 735 |
| | 51 | 6,000 | 200 | ||||||
| | 42 | 8,000 | 200 | ||||||
| | 34 | 10,000 | 200 | ||||||
| | Single | 100 | 100 | 4,000 | 300 | 850 | 1,750 | 1,550 | 735 |
| | 69 | 6,000 | 200 | ||||||
| | 55 | 8,000 | 200 | ||||||
| | Single | 125 | 82 | 6,000 | 250 | 1,000 | 1,950 | 1,700 | 1,035 |
| | 70 | 8,000 | 250 | ||||||
| | Single | 150 | 105 | 6,000 | 300 | 1,000 | 1.95 | 1,700 | 1,040 |
| | 84 | 8,000 | 250 | ||||||
| | 65 | 10,000 | 250 | ||||||
| | Single | 200 | 140 | 6,000 | 300 | 1,000 | 1,950 | 1,700 | 1,045 |
| | 109 | 8,000 | 300 | ||||||
| | 87 | 10,000 | 250 | ||||||
| | Single | 250 | 160 | 6,000 | 300 | 1,000 | 1,950 | 1,700 | 1,080 |
| | 135 | 8,000 | 300 | ||||||
| | 104 | 10,000 | 300 | ||||||
| | Twin | 200 | 200 | 4,000 | 500 | 1,000 | 1,950 | 1,700 | 910 |
| | Twin | 300 | 210 | 6,000 | 400 | 1,300 | 2,350 | 2,100 | 1,600 |
| | 164 | 8,000 | 400 | ||||||
| | 133 | 10,000 | 400 | ||||||
| | Twin | 400 | 272 | 6,000 | 500 | 1,600 | 3,000 | 2,000 | 2,000 |
| | 216 | 8,000 | 400 | ||||||
| | 172 | 10,000 | 400 | ||||||
| | Twin | 500 | 320 | 6,000 | 500 | 1,750 | 3,200 | 2,100 | 2,000 |
| | 270 | 8,000 | 500 | ||||||
| | 208 | 10,000 | 400 | ||||||
| | Twin | 600 | 420 | 6,000 | 600 | 1,900 | 3,500 | 2,000 | 2,500 |
| | 320 | 8,000 | 600 | ||||||
| | 260 | 10,000 | 500 | ||||||
