Lab-Scale Homogenizer
Request a Quote

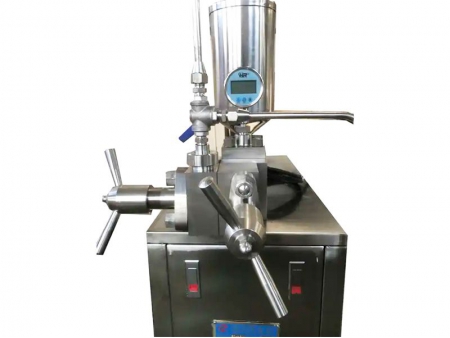

Our lab-scale homogenizer is a great choice for product research and development in scientific labs or small-scale production settings, with a maximum working pressure of 100 MPa and a minimum material testing volume of 200 ml.
Technical Parameters
| Model | GYB40-10SX | GYB60-6SX |
| Flow | 40L/H | 60L/H |
| Max. pressure | 100MPA | 70MPA |
| Nominal pressure | 90MPA | 60MPA |
| Motor power | 3KW | 3KW |
| Dimensions | 920×550×1120MM | 920×550×1120MM |
| Weight | 265KG | 265KG |
| Voltage | 380V50HZ3PH | 380V50HZ3PH |
- Emulsion(oil and water)
- Crushing (brown sugar)
- Cellulose
Specifications
| Models | Pressure (number of passes) | Impact | Product | Pressure (number of passes) | Impact |
| Oil and water entry | 1000 bar (3 pass) | Emulsion | Pulp | 1300 bar (2 pass) | Smash |
| Milk | 600 bar (1 pass) | Dispersion | Flavors and fragrances | 800 bar (3 pass) | Emulsion |
| Cellulose | 1200 bar (3 pass) | Dispersion | Protein drink | 1100 bar (3 pass) | Smash |
