Pharmaceutical Homogenizer
Request a Quote

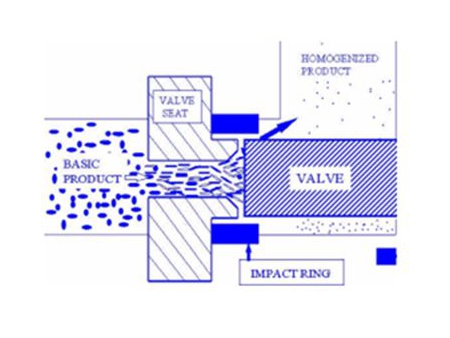

The plunger pump sucks the material and applies pressure to it, causing it to flow into the valve block where the pressure can be adjusted. As the material passes through the limited width gap of the designated area, it is met with one of the valve parts at a high speed and generates a momentary drop in pressure.
Features

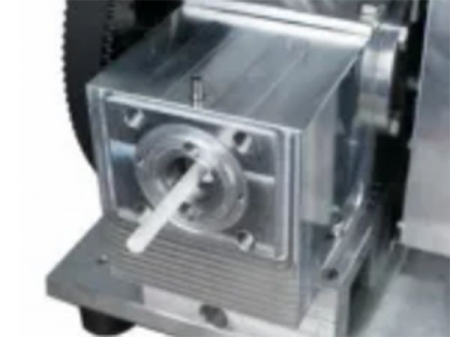

- Unique solution of two-stage homogenizing valve, crafted from ceramic or alloy.
- A digital pressure gauge which is clearly viewable and an electronic safeguard system have been combined, offering simple observation and protection.
- Compact design, suitable for lab bench.
- Circulate cooling device with material
- Modular design, simple to operate, and requires little maintenance.
Technical Parameters
| Max. nominal pressure | 2000 bar |
| Max. operation pressure | 1800 bar |
| Feed size | < 500 μm |
| Dimensions | 440*410*800MM（W*H*L） |
| Product viscosity | < 2000 CP |
| Capacity | 25 mL-13 L/H |
| Feed temperature | < 90 ℃ |
| Weight | 110 kg |
Examples
- Before
- After
- Before
- After
