Type: Light Grader/ 11 feet Blade
Model: 1125
  • 11 feet Blade & 125Hp Rated-Power

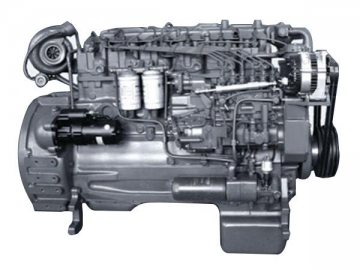

  • Weichai Deutz Eninge with low emission and high efficiency

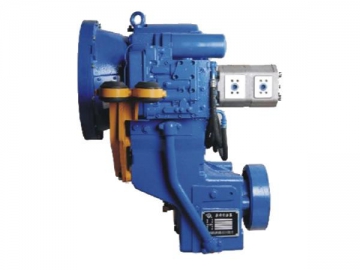

  • 130 power shift transmission of 6-3 speeds
  • Fully sealed low-noise ROPS/FOPS cabin with A/C
  • NO-SPIN differential with automatic locking

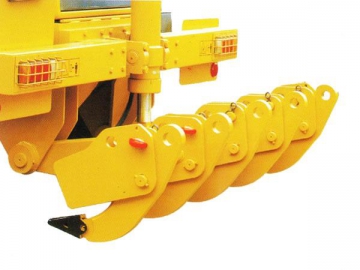

  • Optional Equipment: rear ripper, front dozer, middle scarifier & auto leveling device
The reason for choosing our products
  • Suitable size: We are equipped with 11-inch blade size grader, not familiar in this field, which has a smaller size but works as well as others. With it, a lot of money could be saved.
  • High reliability: As a professional motor grader manufacturer, we have accumulated enough experience for motor grader’s design and production. Motor graders’ quality has already been proven by times.
  • Low cost: The perfect combination of good price and reliability brings the best return on investment.
  • Maintenance: Local maintenance service is available for our efficient engine;
  • Enough spare parts:
    Optional: Rear rippers, front dozer, automatic leveling, customized infrared visual reversing system, air conditioning, and other parts are all available, which provides our products a more comfortable and efficient use.
Specification
Basic parameters Engine: Weichai Power or SDEC Power( promise of permanent localization service)
Engine model: WP6G125E22 Rated power/rotating speed: 92KW/2200rpm
Maximum torque/rotating speed: 680(N.m)/1300~1500(rpm) Overall dimensions: 8500x2600x3300mm
Overall weight: 16000kgs Front axle load/Rear axle load: 4400/11600kgs
Performance parameter Maximum traction: 80KN Turning radius: 7400mm
Top speed: 38Km/h Positions of gearbox: 6 Forward/3 Reverse
Movement of Moldboard Down pressure: 6930kgs Length: 3355mm
Maximum digging depth: 495MM Rotation: 360°
Maximum inclination: 90° Cut angle range:30-65°
Optional attachments Dozer blade Ripper
Grader rake
Service remarks Warranty period: within 1 year after purchasing or 2000h's operation Free attachments
Regular maintenance: at local agent Service training: once when deliver and once every year after
