Request a Quote

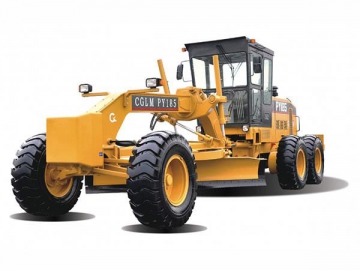

Type: Medium Grader/12 feet Blade
Model: 170 and 185
  • 12 feet Blade & 170HP/210HP Rated-Power

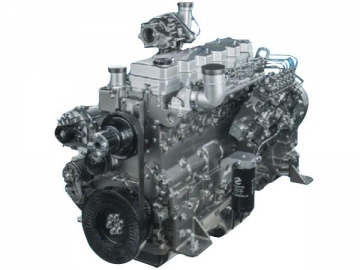

  • Shanghai/Weichai STERY Engine with low emission and high efficiency

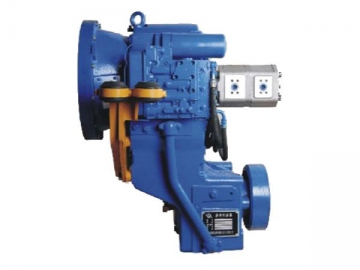

  • 180 Power Shift Transmission of 6-3 Speed
  • Fully sealed low-noise ROPS/FOPS Cabin with A/C
  • NO-SPIN Differential with automatic locking
  • Optional Equipment: rear ripper, front dozer, middle scarifier & auto leveling device
The reason for choosing our products

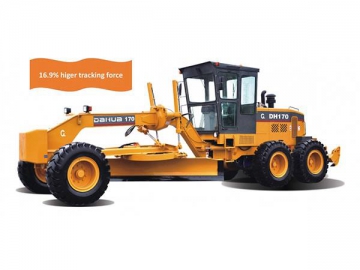

  • High Efficiency: Compared with other graders with same size, our grader works with 19% higher tracking force, which is the key performance for grader. (Please check the following comparing form) You will get good value for money.
  • High reliability: As a professional motor grader manufacturer, we have accumulated enough experience for motor grader’s design and production. Our motor graders’ quality has already been proven by times.
  • Low cost: The perfect combination of good price and reliability brings the best return on investment.
  • Maintenance: Local maintenance service is available for our efficient engine;
  • Enough spare parts:
    Optional: Rear rippers, front dozer, automatic leveling, customized infrared visual reversing system, air conditioning, and other parts are all available, which provides our products a more comfortable and efficient use.
Specification
Basic parameters Engine: SDEC Power
Engine model: SC7H170 Rated power/rotating speed: 125KW/2200rpm
Maximum torque/rotating speed:860(N.m)/1300~1500(rpm) Overall dimensions:8700x2600x3330mm
Overall weight: 14500kgs Front axle load/Rear axle load: 4350/10150kgs
Performance parameter Maximum traction: 90KN Turning radius: 7500mm
Top speed: 38Km/h Positions of gearbox: 6 Forward/3 Reverse
Movement of Moldboard Down pressure: 7030kgs Length: 3658mm
Maximum digging depth: 495MM Rotation: 360°
Maximum inclination: 90° Cut angle range:30-65°

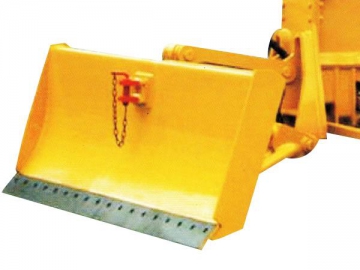

Optional attachments Dozer blade Ripper
Grader rake
Service remarks Warranty period:within 1 year after purchasing or 2000h's operation Free attachments
Regular maintenance: at local agent Service training: once when deliver and once every year after
