Heavy Duty Grader/13 feet Blade
Model: 200
  • 13 foot Blade & 220HP Rated-Power

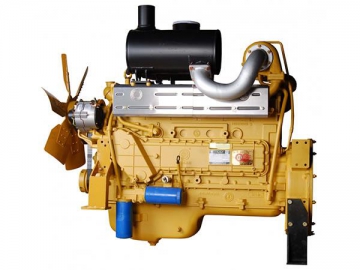

  • Shanghai/Weichai STERY engine with low emission and high efficiency

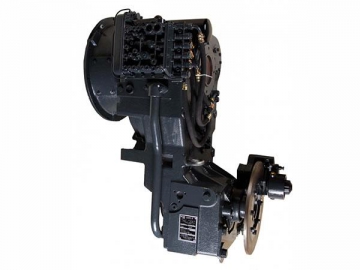

  • 200 power shift transmission of 6-3 speed
  • Fully sealed low-noise ROPS/FOPS cabin with A/C
  • NO-SPIN differential with automatic locking

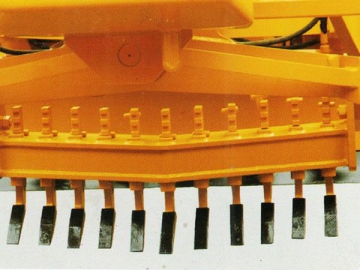

  • Optional Equipment: rear ripper, front dozer, middle scarifier & auto leveling device
The reason for choosing our products
  • High Efficiency: Compared with other graders with same size, our grader works with 9.32% higher tracking force which is key performance for grader. (Please check the following comparing form) You will get good value for money.
  • High reliability: As a professional motor grader manufacturer, we have accumulated enough experience for motor grader’s design and production. Our motor graders’ quality has already been proven by times.
  • Low cost: The perfect combination of good price and reliability brings the best return on investment.
  • Maintenance: Local maintenance service is available for our efficient engine;
  • Enough spare parts:

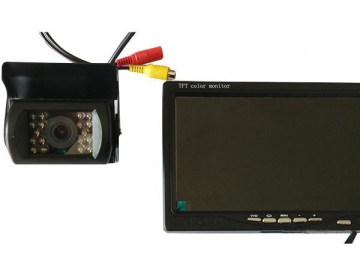

    Optional: Rear rippers, front dozer, automatic leveling, customized infrared visual reversing system, air conditioning, and other parts are all available, which provides our products a more comfortable and efficient use.
Specification
Basic parameters Engine: Weichai Power or SDEC Power
Engine model: SC9DK220 Rated power/rotating speed:162KW/2200rpm
Maximum torque/rotating speed:1080(N.m)/1300~1500(rpm) Overall dimensions:9250x2600x3300mm
Overall weight: 13000kgs Front axle load/Rear axle load: 4100/8900kgs
Performance parameter Maximum traction: 103KN Turning radius: 8100mm
Top speed: 38Km/h Positions of gearbox: 6 Forward/3 Reverse
Movement of Moldboard Down pressure:7700kgs Length: 3962mm
Maximum digging depth: 495MM Rotation: 360°
Maximum inclination: 90° Cut angle range:30-65°
Optional attachments Dozer blade Ripper
Front \ middle grader rake
Service remarks Warranty period:within 1 year after purchasing or 2000h's operation Free attachments
Regular maintenance: at local agent Service training: once when deliver and once every year after
