Mobile Shiploader and Stacker

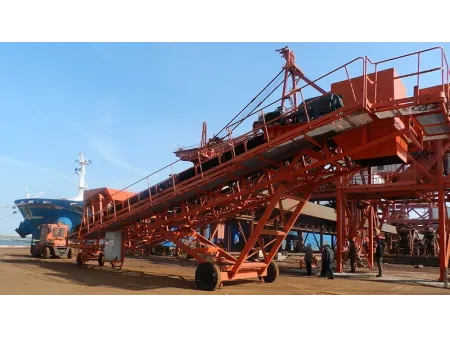

Mobile shiploaders manufactured by Yuxin Machinery are designed with advanced features to ensure superior flexibility. These shiploaders have telescopic, pitching, and slewing capabilities, perfect for adapting to various operational needs. What sets these loaders apart is their ability to move independently, smoothly navigating through work areas while automatically detecting obstacles and balancing loads. This ensures not only safety but also efficiency in handling tasks. Moreover, remote video monitoring allows for overseeing operations from a distance, reducing the need for direct supervision and cutting operational costs and risks. These features make our loaders an intelligent choice for ports and yards, where quick, safe, and efficient loading and stacking of materials are critical.
- Loading Capacity0-4000TPH
- Conveyor Length25- 58m
- Stockpile Height9.3-18m (maximum height)
These mobile port handling units maximize storage space in limited areas and are adaptable for use in a range of applications, including loading to trucks, ships, and for transshipment processes. This adaptability ensures that operations remain smooth and uninterrupted, regardless of the cargo type or destination.
Our mobile shiploaders can handle a wide range of materials easily. Whether it's coal, coke, various ores, mineral powders, aggregates, grains, or biomass, the material handling equipment is designed to manage both the heavy and the light, the coarse and the fine, ensuring that all materials are conveyed smoothly.
Our equipment is designed to meet any site requirement, including various models that can connect directly with trucks: radial telescopic shiploaders, all-wheel travel shiploaders, and barge loaders. Each loading equipment can be customized, from direct feed barge loaders to rail-mounted ship loaders, ensuring that we can offer the most suitable solution no matter what the specific needs of your operation.
| Conveyor Length | 33m | 40m | 46m | 52m | 60m |
| (A) Fixed Conveyor Length Boom Length (m) | 23 10 | 28 12 | 31 15 | 33 18 | 40 20 |
| (B) Highest Extended Discharge Height (m) | 10.3 | 12 | 14.6 | 15.2 | 17.5 |
| (C) Lowest Extended Discharge Height (m) | 5.6 | 6 | 6 | 6.5 | 7 |
| (D) Highest Retracted Discharge Height (m) | 7.3 | 8 | 8.6 | 9.2 | 9.8 |
| (E) Lowest Retracted Discharge Height (m) | 4.2 | 4 | 4.2 | 4.6 | 5 |
| (F) Anchor Pivot to Center of Axle (m) | 13.5 | 15 | 18 | 23 | 24.5 |
| (G) Loading Height at Tail (m) | 3.6 | 3.6 | 3.6 | 4 | 4 |
- Easy to move: Designed for flexibility, these loaders can be quickly repositioned for different working areas.
- Excellent adaptability: Equipped with hydraulic lifting and telescoping mechanisms, the unloading positions can be freely adjusted. This adaptability makes our ship loaders suitable for loading ships of different sizes and managing stockpile and transshipment tasks across different material yards.
- Easy operation: The radio remote controller or centralized control make the operation easily and successfully and make it possible for just one person to manage the process smoothly.
- Environment-friendly: The discharge head features a telescopic chute that has a sealed design to contain dust, reducing environmental impact.
- High conveying capacity: Our mobile shiploaders are capable of handling up to 4000 tons per hour or more. They are designed for heavy-duty operations, ensuring that you can move vast quantities of material efficiently.
- Cost-effective: Compared to other material conveying equipment types, our shiploaders significantly reduce investment costs in shipping systems and material yards, effectively lowering overall investment. These material handling units are designed to convey a wide range of materials, from coal and coke to ore, mineral powder, and even grain.

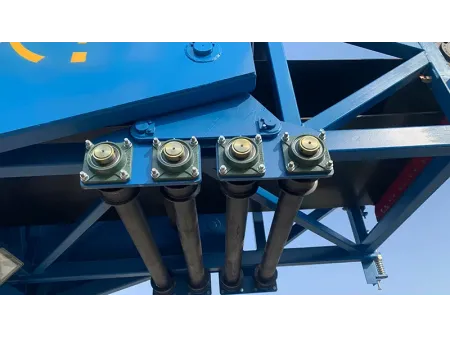

This device uses four heavy rollers for enhanced support to ensure stable operation.
Features telescopic support powered by a high-pressure hydraulic cylinder, allowing manual or remote adjustments of the stacker's inclination angle at any time for optimal efficiency.
Equipped with four wheels on one side, this set offers stable support and smooth operation. It enhances maneuverability, enabling effortless swing and circular discharging.
Designed for quick transition between active and idle modes, this cylinder provides solid ground support, facilitates load-free turning, and ensures rapid progression to subsequent operational phases.
Ensures neat cable organization and secures the power supply for the telescopic section, enhancing operational reliability and minimizing disruption.
Features a PLC control panel capable of executing various functions like automatic material stacking/discharging in fan or shuttle shapes, as well as automatic lifting, making the functions easy to operate.
Safety guards are installed on all rotating parts to protect operators and machinery, ensuring a safer work environment and reducing the likelihood of accidents.
Manufactured with high wear-resistant liners to prolong its lifespan, the hopper is designed for dual-side loading. Its capacity is customizable to meet specific operational needs.
This device offers a reasonable layout with quick response features, effectively minimizing operational risks in a timely manner to safeguard both personnel and equipment.
A variety of optional components are available, including rain cover, metal separator, walk way, lighting equipment, dust suppression and removal, generator set, monitoring system, telescopic chute, etc.
-
Walk Way
Features a modular design for easy access and easy installation.
-
Monitoring System
Enables remote, real-time monitoring of on-site equipment operations, simplifying data checks and reducing safety management expenses.
-
Electro-Magnetic Separator
Features a compact design for easy installation, with a powerful magnetic force that effectively captures magnetic debris, safeguarding the rubber belt.
-
Lighting Facility
Equipped at both loading and discharging points, this lighting setup is designed for night operations, offering high efficiency, energy savings, and longevity.
-
Rain Cover
Designed to prevent rainwater infiltration and dust escape, ensuring the stacker remains operational even on rainy days.
-
Belt Scale (Micro-computerized nuclear scale and/or common-used scale)
Offers real-time weighing and remote monitoring, available in both micro-computerized nuclear and standard scales for precise operation tracking.
-
Diesel Generator Set
Guarantees operational autonomy with its own generator, ensuring functionality even without an external power supply.
-
Telescopic Chute
Allows effective adjustment of the discharging height and area, providing an eco-friendly and reliable solution for dust control.
-
Telescopic Chuteself-Propelled Device
Supports equipment mobility with the ability to navigate curves and turn flexibly, ideal for sites requiring frequent relocations.
-
Walkway Safety Railing
