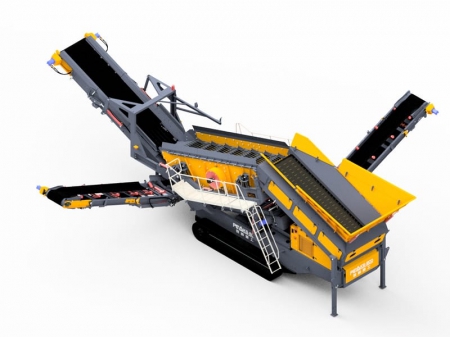

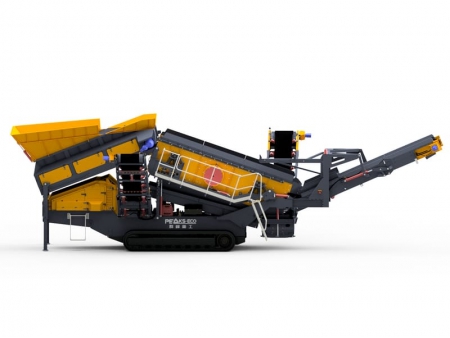

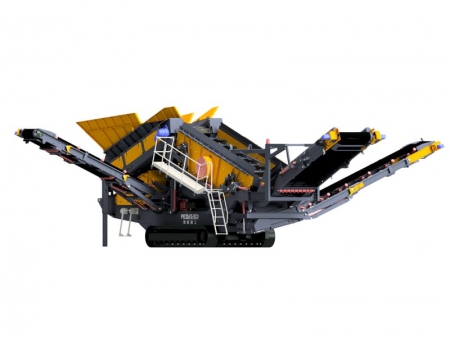

Mobile Screener
The mobile screening machine is a highly efficient and convenient solution widely used across mining, construction, road building, and other sectors.
The PEAKS-ECO mobile screener offers precise material separation with outstanding screening efficiency. Its adaptable design allows for easy relocation between sites without the need for complex installation or adjustments.
Our recycling screens feature maximized open screening surfaces, delivering perfect screening capacity. This self-propelled mobile screening equipment is quick to set up and can be operated by a single person, ensuring reliable and optimal performance.
Featuring a high level of automation, our mobile screener is easy to operate, while its low maintenance requirements and straightforward daily upkeep help reduce overall operating costs.
- Power System: Equipped with multiple drive options, including external power supply and dual-fuel (electric and diesel), to meet various operational requirements.
- Control System: Features a touchscreen interface for easy operation, along with wireless remote control for enhanced safety.
| Model | | | |
| Max. capacity (t/h) | 650 | 650 | 450 |
| Engine | CAT 125Hp (93kW) | CAT 125Hp (93kW) | CAT 10OHp (75kW) |
| Top screen size (m) | 6×1.5 | 6×1.5 | 4×1.5 |
| Bottom screen size (m) | 5.5×1.5 | 5.5×1.5 | 3.6×1.5 |
| Center screen size (m) | --- | 6×1.5 | 4×1.5 |
| Dimensions (L×W×H) (m) | 18.0×3.0×3.5 | 17.0×3.0×3.5 | 18.0×3.0×3.5 |
| Working size (L×W) (m) | 20×18 | 17×16 | 20×18 |
