Rotor Drum Granulator

Request a Quote

View All: http://animalfeedcn.com/3-4-rotor-drum-granulator.html

Description

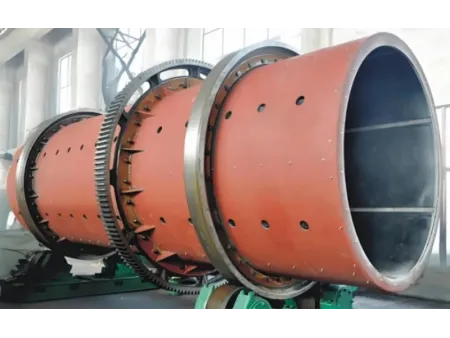

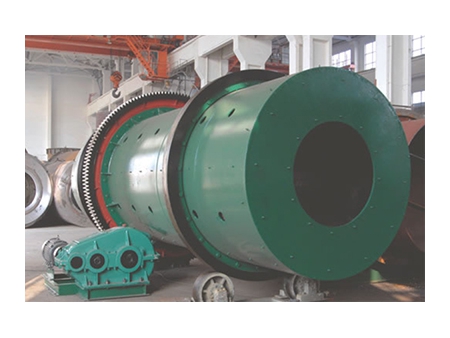

As one of the crucial equipment in organic fertilizer industry, the rotor drum granulator is a forming machinery making materials into specific shapes. The main working mode of the equipment is wet granulation, utilizing a quantitative mount of water or vapor to make the basic fertilizer fully turned, rolled and gathered into a ball after it is moistened in the cylinder. For large-sized rotor drum granulator, we employ double motor to start and single motor to operate, saving 25% electricity.

Application
The rotor drum granulator is suitable for cold and hot granulation as well as large-scale production of mixed organic fertilizers with high, medium and low concentrations

Parameters

cifications	Cylinder					Production capacity
	Inclination	Inner diameter	Length	Rotational speed	Power	Production capacity
	°	Mm	Mm	r/min	Kw	t/h
Φ1.5*5	2-2.5	1500	5000	14	11	3--5
Φ1.8*6		1800	6000	11.5	15	5--8
Φ2.0*9		2000	9000	10.8	22	8--10
Φ2.4*10		2400	10000	9.7	37	12--15
