PV1-F solar cable

Request a Quote

Single core copper conductor XLPO insulated XLPO sheathed solar cable

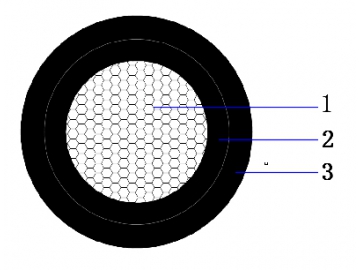

Construction：

Conductor - Class 5 tinned annealed stranded copper conductor
Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)
Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)

Application:

Solar cables are applied to flexible single-core cables (cords) for use in the photovoltaic system DC side with a maximum permitted DC voltage of DC 1.8kV. These cables have safety levels equivalent to class II.

Electrical characteristics:

Rated voltage: 0.6/1kV AC
Max. permitted DC voltage: 1.8kV (conductor/conductor, non-earthed system)
Spark test voltage: 6000V AC
Test voltage: 6500V for 5min

Temperature characteristics:

Working temperature: -40℃~90℃
Max. temperature at conductor: 120℃
Short circuit temperature: 200℃ (5s)

Chemical characteristics:

Weather / UV resistance
Mineral oil resistance

Color:

Insulation: Black or white or as customer’s requirement
Outer sheath: Red or black or as customer’s requirement

Standard:

TUV 2PfG 1169
IEC60228, IEC60332
EN50305, EN50395, EN50396

Cross section:

1 core: 1.5~35mm²
