Wood Brushing Machine with High Frame

Request a Quote

View All: http://woodmachines-en.com/1-11-6-2-high-frame-wood-brushing-machine.html

//Woodworking Machinery

Wood texturing machine for textured wood surfaces

Woodworking Machinery

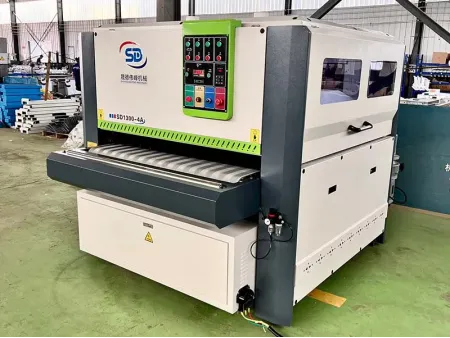

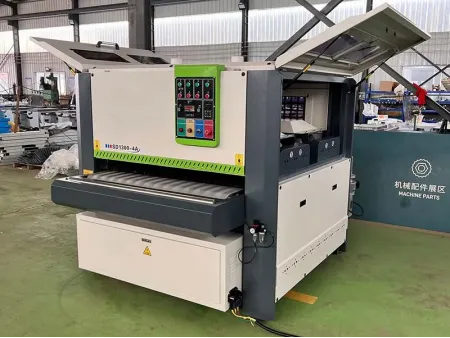

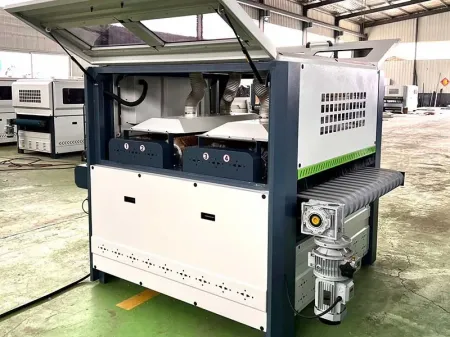

The high frame wood brushing machine is capable of brushing and polishing solid wood panels. It ensures consistent surface texturing and smooth finishes, effectively replacing manual sanding. The brushing depth is uniform, and the polished surfaces are burr-free. Built with a reinforced high-frame structure, this model delivers increased operational stability and accuracy, suitable for medium- to large-scale wood processing applications.

Specifications

Machine dimensions (L×W×H) 2600×1600×1800mm
Machine weight 1200 kg
Maximum workpiece width 1000 mm
Minimum workpiece length 300 mm
Workpiece thickness range 3-100 mm

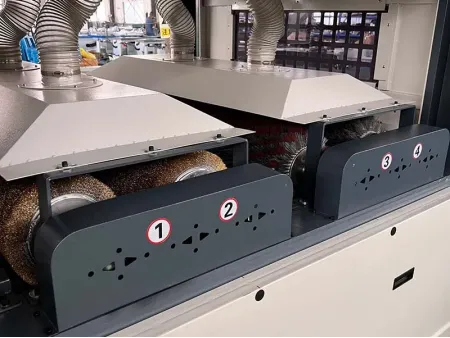

Brushing Configuration (4 Brush Units)

Units 1 & 2

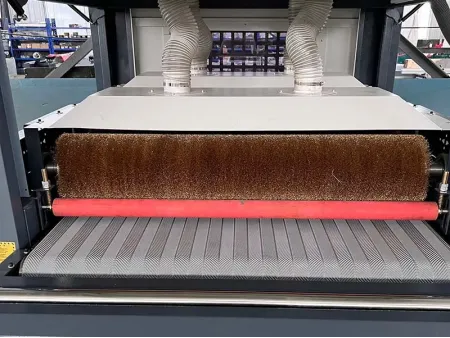

Steel wire brushing rollers, fixed speed approx. 1000 RPM
Units 3 & 4
Abrasive filament sanding strip rollers, frequency-controlled speed
Frame
Welded with national standard channel steel; thickened steel brushing table milled on gantry-type machine tool for enhanced flatness and precision
Electrical Components
Motors: 100% copper-core motors, rated to national standards
Electrical: Tengen contactors and transformers, Delixi phase protection relays, Hailin (Qingdao) VFD module, LED lighting

Motor Specifications

Steel wire brush motors 7.5 kW×2
Sanding roller motors 1.5 kW×2
Lifting motor 0.55 kW×1
Conveyor motor 1.1 kW×1
Total power 19.65 kW
Voltage 380V, 50 Hz, 3-phase
Recommended power cable 10 mm², 3-core copper wire
