Key Eye Point with Self Locking Plate

Request a Quote

Website: http://loadlifting-en.com/1-11-key-eye-point-03-12t.html

BLT094 Rigging Hardware

Working Load Limit 0.3-12t

Rotation 360 degree

Material: High-strength chromium-molybdenum alloy steel
Attachment type: Screw-in
Rotation angle: 360°
Pivot angle: 0°
Surface treatment (rings): Powder-coated
Surface treatment (bolts): Black oxide finish
Working temperature range: -40℃~ 200℃
Thread size: M8–M48
Bolt grade: 10.9
Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
Rotates under load: No
Holding spring for suspension link: No
Working load limit: 0.3T-12T
Safety factor: 4:1
Standard: DIN EN 1677-1
Explosion protection: No
RAL color No.: Customizable
Identification label available: No

Inspection and Standards

Passed 6g plug gauge inspection for compatibility with precision-threaded holes
Withstood 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for durability
Verified through magnetic particle inspection to confirm crack-free integrity
Manufactured according to EN1677-1 standards, with certified test reports available upon request

Applications

Oil and gas: Suitable for lifting operations in tight spaces, such as installing and maintaining oil and gas extraction equipment
Logistics and transportation: Frequently used for lifting and handling bulky or irregularly shaped cargo, including containers and large bulk goods

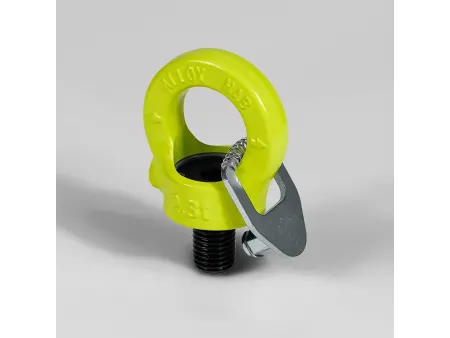

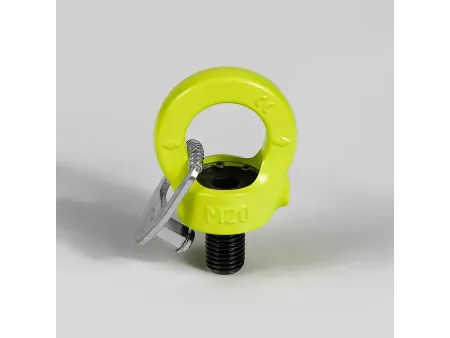

The key eye point offers a working load limit of 0.3-12t and full 360-degree rotation. Its lightweight, compact design, combined with a self-locking plate that ensures quick, tool-free installation, makes it an ideal solution for efficient and secure lifting operations in limited spaces.

Key Features

Compact and lightweight design for installation in confined lifting environments
Enables full 360° rotation for precise load positioning
Equipped with a self-locking plate for quick, tool-free installation.
Available in M8-M48 and custom thread sizes (extended, shortened, coarse, fine, metric, or imperial)
Work load limited (WLL) of 0.3-12t, ensuring safe performance even at challenging angles (e.g., 90°)
4:1 safety factor with 100% non-destructive testing for enhanced reliability
Load-bearing components feature batch numbers for easy traceability
Forged from high-strength chromium-molybdenum alloy steel, heat-treated (quenched and tempered) for superior strength and toughness
Epoxy resin electrostatic powder coating (ring) and black oxide treatment (bolt) for enhanced corrosion resistance

Specifications

(Available in Metric Thread and UNC Thread)

Item No.	Working Load Limit (t)	Thread M	Dimensions (mm)								Torque (Nm)	Weight (kg)
Item No.	Working Load Limit (t)	Thread M	E	A	B	C	D	F	W	S	Torque (Nm)	Weight (kg)
BLT094-M8	0.30	8×1.25	12	40.0	25	8	9.5	26	44	6	10-40	0.15
BLT094-M10	0.40	10×1.50	15	40.0	25	8	9.5	26	44	6	10-40	0.15
BLT094-M12	0.75	12×1.75	18	47.0	30	10	11.0	32	52	8	15-40	0.20
BLT094-M14	0.75	14×2.00	18	47.0	30	10	11.0	32	52	8	30-100	0.20
BLT094-M16	1.50	16×2.00	24	54.0	35	14	13.0	39	61	10	45-130	0.35
BLT094-M18	1.50	18X2.50	24	54.0	35	14	13.0	39	61	10	100-170	035
BLT094-M20	2.30	20×2.50	30	63.0	40	16	15.0	47	70	12	100-170	0.60
BLT094-M22	2.30	22×2.50	30	63.0	40	16	15.0	47	70	12	100-170	0.60
BLT094-M24	3.20	24×3.00	36	73.0	48	19	18.0	55	84	14	190-280	1.00
BLT094-M27	3.20	27x3.00	36	73.0	48	19	18.0	55	84	14	250-500	1.00
BLT094-M30	4.50	30×3.50	45	91.5	60	24	22.5	67	105	17	270-600	2.00
BLT094-M33	4.50	33×3.50	45	91.5	60	24	22.5	67	105	17	270-600	2.00
BLT094-M36	7.00	36×4.00	54	114.0	72	29	27.0	85	126	22	270-600	3.00
BLT094-M42	9.00	42×4.50	63	130.0	82	34	32.5	98	147	22	350-800	5.00
BLT094-M48	12.00	48X5.00	72	151.0	96	38	36.0	114	168	27	350-800	7.50
