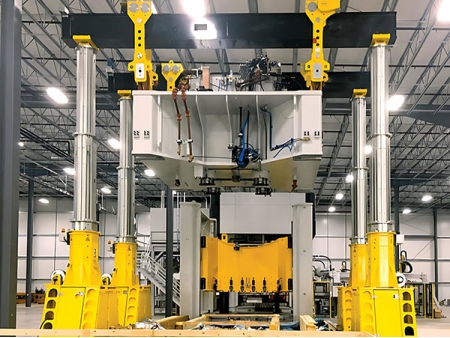

Hydraulic Gantry Crane

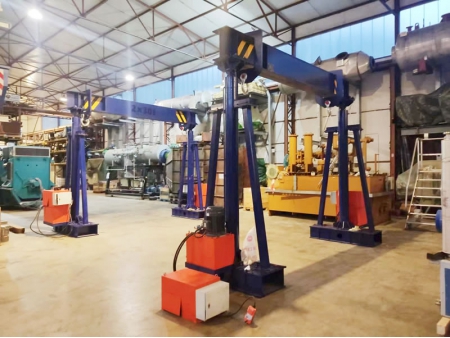

The hydraulic gantry crane is a type of light and small crane equipment that can move and rotate 360°. Universal load wheels are installed under the outriggers, which can move freely on flat ground. The main beam of the mast and the outrigger can be quickly disassembled and installed. This gantry crane can be easily moved and disassembled from one work site to another.
| Capacity | 0.5 ton | 1 ton | 2 ton | 3 ton | 4 ton | 5 ton | 7.5 ton | 10 ton |
| Span | 2-12 (customized) m | |||||||
| Height | 1-10 (customized) m | |||||||
| Lifting Equipment | Manual / electric wire rope or chain hoist | |||||||
| Power | Three-phase, 380V 50Hz, or as required | |||||||
Note: Its height, voltage and other parameters can be customized according to your needs. The flexible design is available to meet various working environments.
- The working height can be flexibly set according to the working environment, and the height can also be adjusted when loading.
- Standard modular design makes installation and adjustment easier.
- It can be installed and used on any flat ground.
- With wide applicability, the hydraulic gantry lift system is applicable to various material handling environments.
- The heavy lifting equipment features easy installation, reduced installation time and cost, and high cost performance.

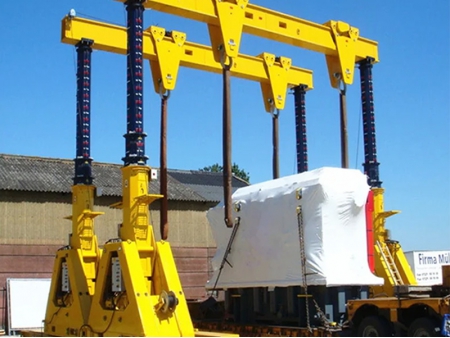

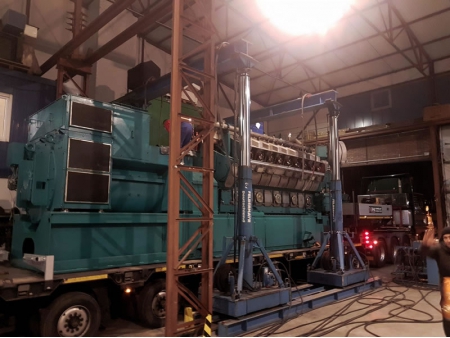

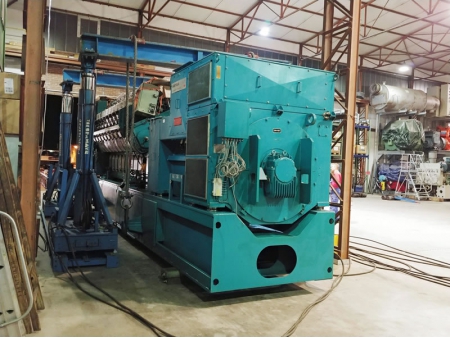

The hydraulic gantry crane is a small portable lifting gantry crane that can meet the requirements of daily production, such as handling equipment, warehouse incoming and outgoing goods, lifting and maintenance of heavy equipment and material transportation. It can be used in mold manufacturing, auto repair plants, mines, construction sites and occasions requiring lifting.

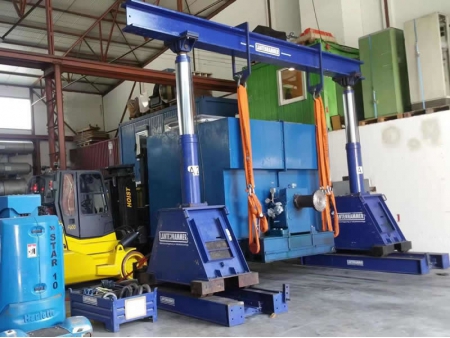

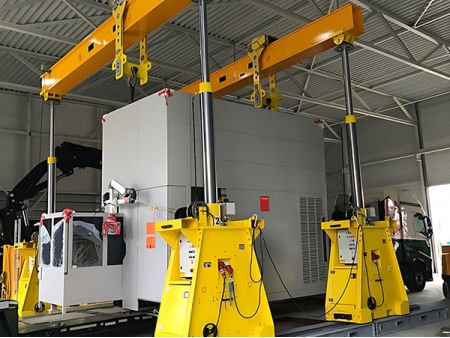

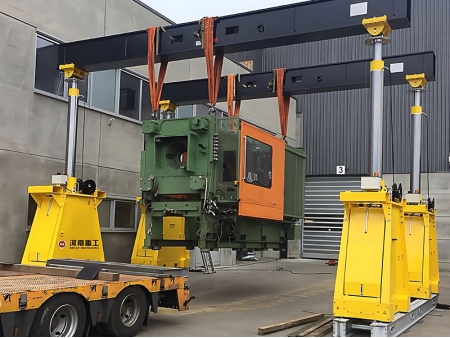

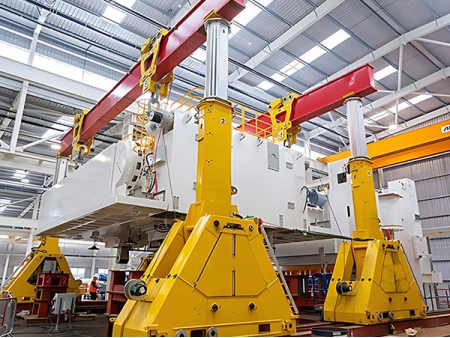

It is especially suitable for the installation, handling and commissioning of workshop equipment, and is widely used for mold installation of injection molding machines in factories, material handling, loading and unloading of goods on automobiles, and lifting of large engine parts in auto repair workshops.
