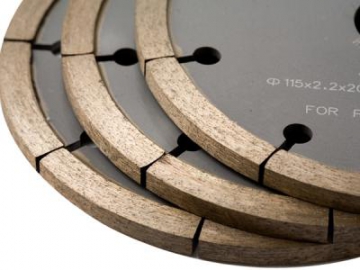

Ceramic Tile Grooving Diamond Blade
Request a Quote
Ceramic tile grooving diamond blades are engineered for installation on manual cutting or auto cutting machines for grooving processes. IT is the best fit tool for producing straight grooves and preventing cracks in the ceramic surface.
Technical Parameters：Working Condition: Water Cooling

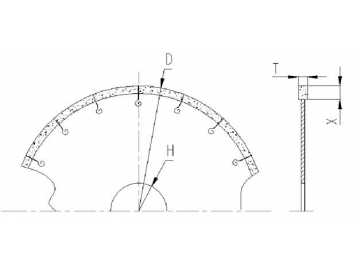

| Code | Outer Diameter | Thickness (mm) | Height (mm) | Arbor (mm) | Grit | |
| Inches | Metric(mm) | |||||
| WST115 | 4.5 | 115 | 4.0/5.0 | 7 | 20 | D107、D126、D151、D181 |
| WST150 | 6 | 150 | 5.0/6.0/10 | 7 | 30/32 | |
| WST200 | 8 | 200 | 5.0/6.0 | 7 | 30/32 | |
| WST250 | 10 | 250 | 3.0/3.8/4.0/4.5/5/10/15/20 | 7 | 60 | |
| WST300 | 12 | 300 | 3.0/3.8/4.0/4.8/5/6/6.5/10/15/20 | 7 | 60 | |
Remark: Other specs are available upon request
