AS-P04 Top and Base Labeling Machine Manufacturer

AS-P04 Top and Base Labeling Machine

Request a Quote

View All: http://labelingsolution.com/1-13-as-p04-top-and-base-labelling-machine.html

This top base labeling machine was developed for the application of self-adhesive labels onto the top and base of various products simultaneously. It features a maximum production speed of 120 pcs/min. Optional coding machines and industrial inkjet printers can be installed on the labeling head to print the production date, batch number, bar code, and more information on the label.

Applications

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: products with flat surfaces including cartons and paper boxes.
Applicable industries: paper, printing, packaging, garment, pharmaceutical, food, electronics, hardware, plastic, chemical, etc.

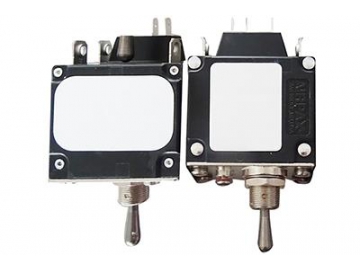

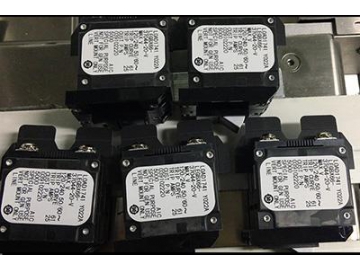

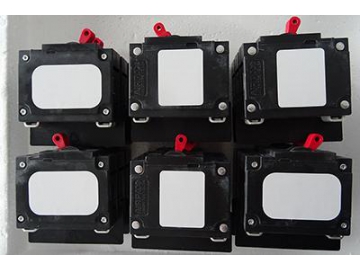

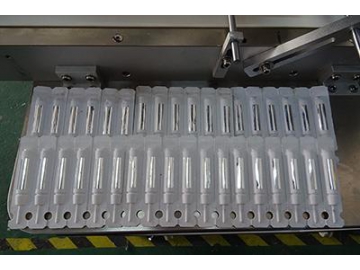

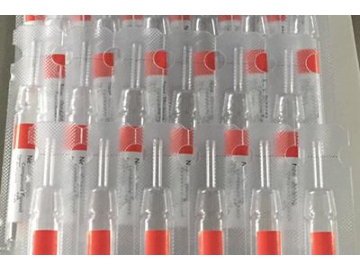

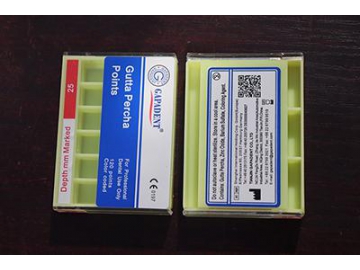

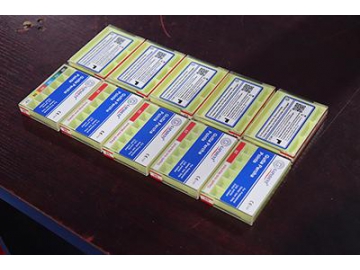

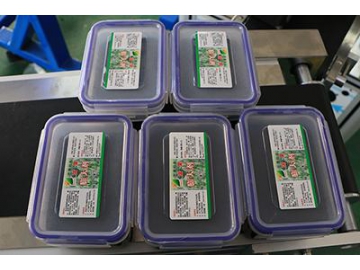

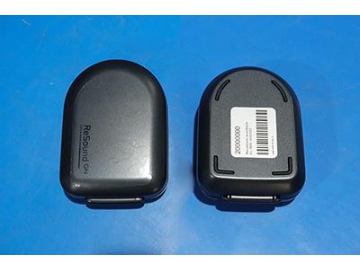

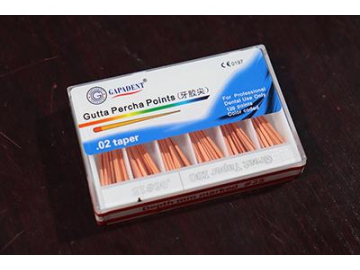

Samples

Specification

Model	AS-P04
Label stop accuracy	±1mm
Production speed	60-120 pcs/min
Product length	20mm～400mm
Product width	20mm～200mm
Product height	10mm～200mm
Label length	20mm～100mm
Label roll inside diameter	Φ76mm
Label roll outside diameter	Φ280mm
Dimensions (length x width x height)	2200mm x 980mm x 1600mm
Weight	150Kg

Details of Top &Base Labeling system

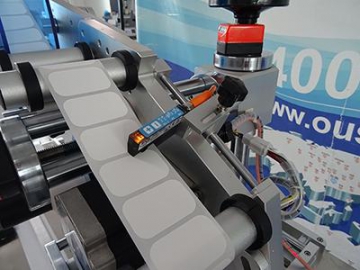

Photoelectric sensor
The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability.

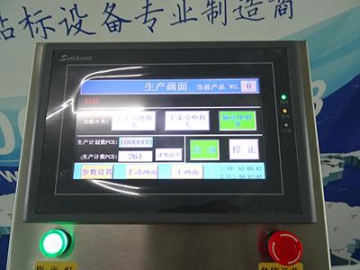

Touch screen:
Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs.

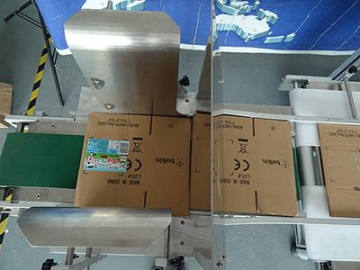

Automatic separating equipment:
It is designed to separate the workpiece so as to minimize labor costs and improve productivity.

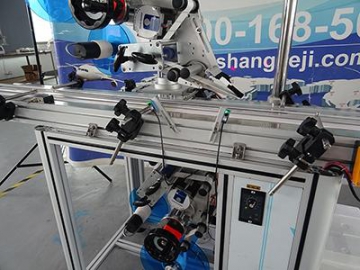

Two labeling heads: They can apply the self-adhesive label on the top and base of various products simultaneously.
Easy to adjust: The 6DOF adjustable seat enables quick changeover between different products.
