Front and Back Labeling Machine Manufacturer

Front and Back Labeling Machine

Request a Quote

View All: http://labeling-en.com/3-front-and-back-labeling-machine.html

Self-Adhesive Labeling Machines

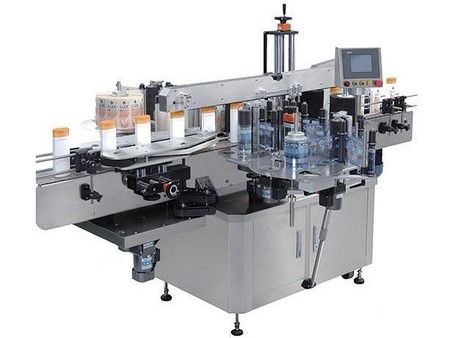

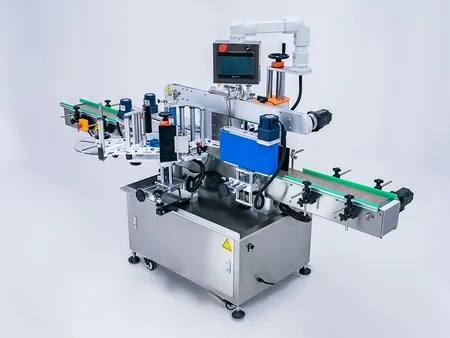

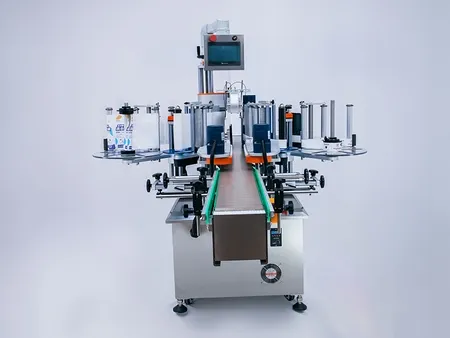

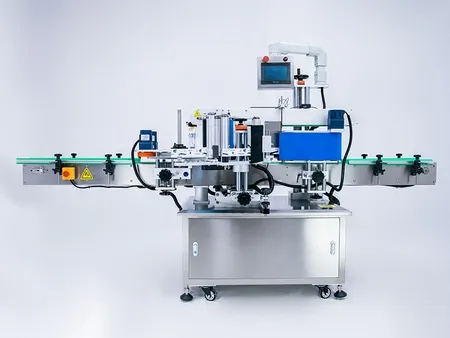

Automatic two-sided labeling machine for applying self-adhesive labels on both sides of package

Designed to make your labeling process faster and more efficient, our front and back labeling machine features a dual-sided separation design; it can label both sides of your products simultaneously, reaching speeds of up to 200 bottles per minute. It’s fully adjustable to meet your specific requirements for flat surface labeling. Plus, if you ever need single-side labeling, this labeler can be easily modified, giving you the flexibility to handle a wide range of products. Whether you’re in the food, pharmaceutical, or another industry, this front and back labeling machine is ready to adapt to your needs. Let’s talk about how it can simplify your production!

Labeling Speed
10 to 200 Products Per Minute
Machine Dimensions (L×W×H)
2800×1500×1600mm

Details

Specifications

Machine Dimensions (L×W×H)2800×1500×1600mm
Conveyor Belt Height From Ground880mm
Conveyor Chain Width101.6mm
Labeling Speed10-200pc/min (depending on bottle diameter and label length)
Applicable Product Height30-350mm
Applicable Product Thickness20-120mm
Label Height Range5-215mm
Label Length Range20-300mm
Labeling Accuracy±1mm (excluding package and label errors)
Inner Diameter of Label Roll40mm/76mm
Outer Diameter of Label Roll＜ 360mm
Power SupplySingle phase 220V 50/60HZ 3.5kW
Machine Weight400kg

Applications

This front and back labeling machine is perfect for production lines requiring large-scale labeling. It’s designed to apply labels on side flat surfaces or large curved side surfaces, making it ideal for industries such as food, pharmaceuticals, cosmetics, personal care, electronics, hardware, and plastics.

Here are some examples:

Food Industry: Side labeling for bagged products or irregularly shaped boxed food.

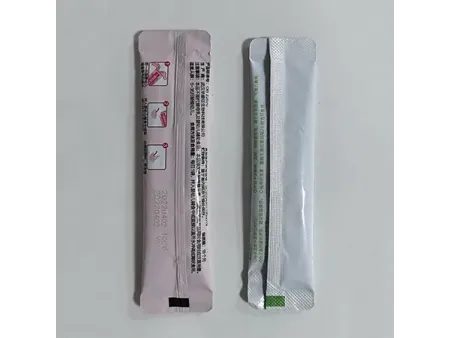

Pharmaceuticals: Attaching side instruction labels on certain bagged medical products.
Cosmetics: Labeling on outer packaging boxes for cosmetic products.

Features

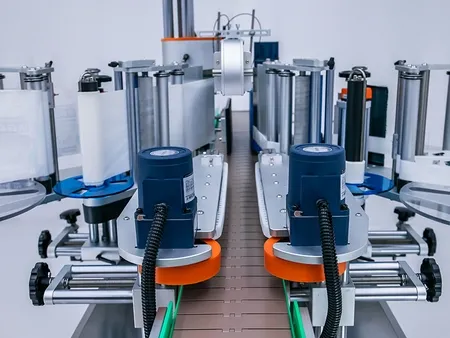

Left-Right Separation Design: Flexible installation, easily integrates into both new and existing production lines, even in narrow spaces.

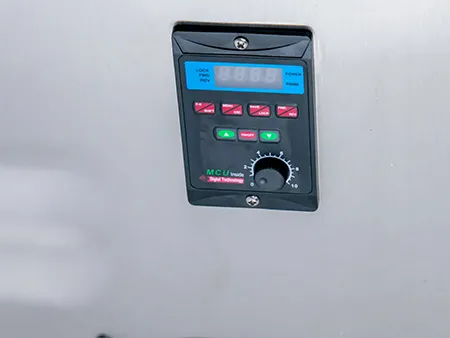

Smart Control System: Equipped with automatic photoelectric tracking, ensuring no product, no labeling, automatic label correction, and label detection to prevent missed labels and reduce waste.

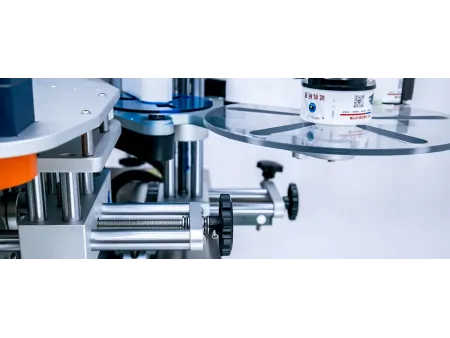

Versatile Labeling Capability: Suitable for single-side or double-side labeling of various products, including round, flat, square, and irregularly shaped bottles. Comes with an automatic bottle separation mechanism to ensure stable guiding, conveying, and labeling.

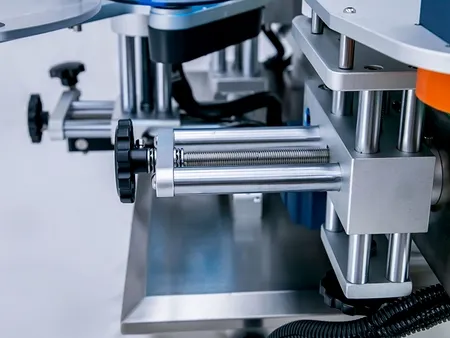

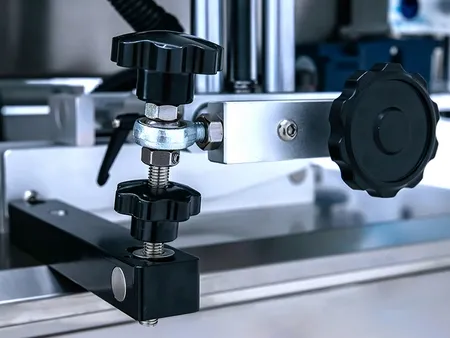

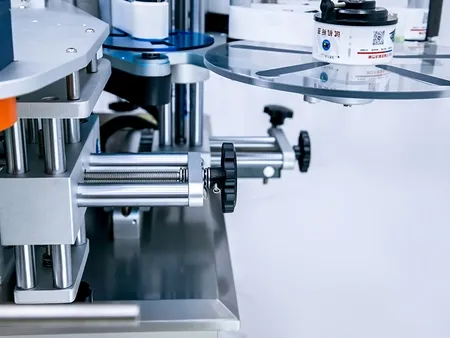

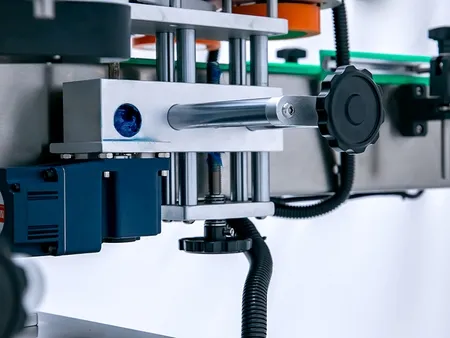

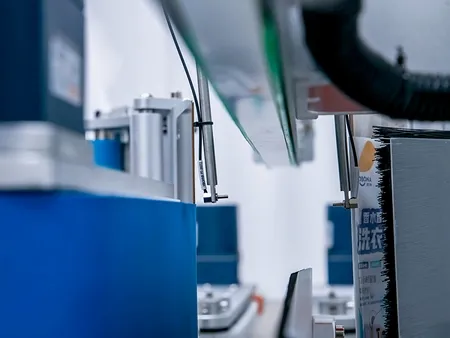

Innovative Labeling Head: Adjustable in eight dimensions, allowing quick adjustments for any product in just minutes.

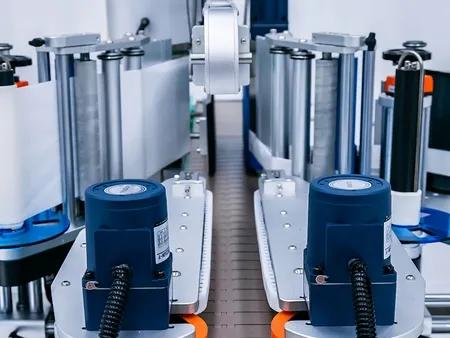

Imported Servo Motor: Features true closed-circuit control with high-precision subdivision and an integrated absolute encoder, designed for high-speed, high-accuracy, and stable labeling performance.
Enhanced Automation: Includes automatic detection, correction, and counting functions, significantly boosting production efficiency and labeling accuracy.

Videos

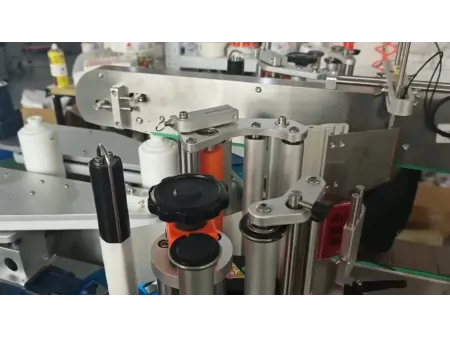

Front and Back Labeling Machine

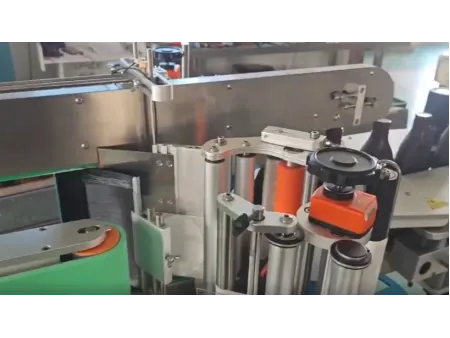

Front and Back Labeling Machine for Chocolate Sauce Bottle

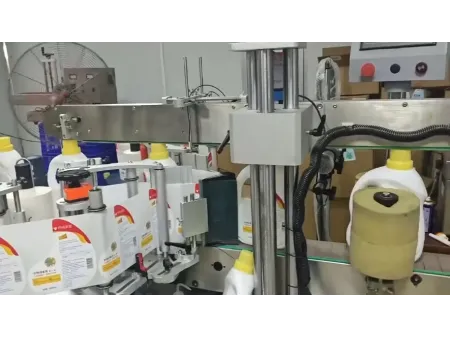

Front and Back Labeling Machine for Laundry Detergent Manufacturer
