Self-Adhesive Labeling Machines

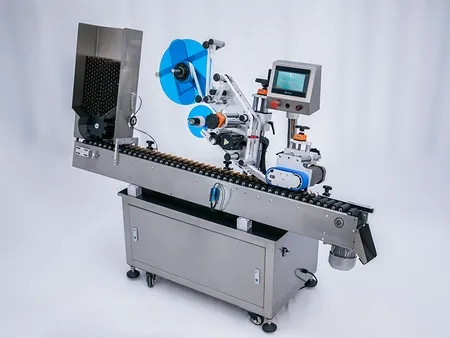

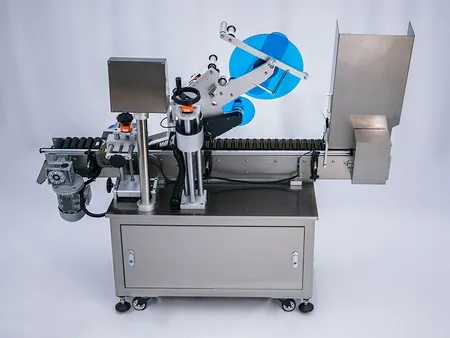

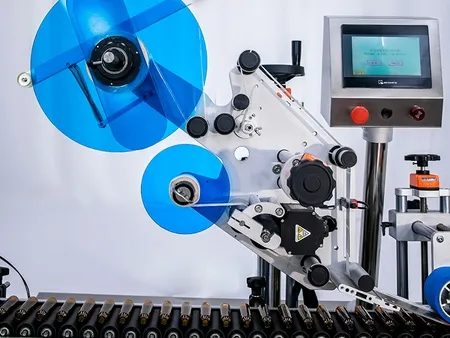

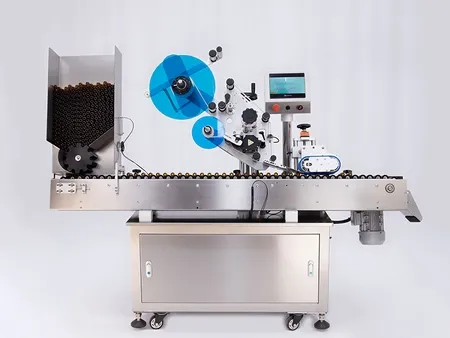

Automatic horizontal wrap labeler for applying self-adhesive labels on cylindrical products

If you’re looking for a solution to label objects that can’t stand upright, this horizontal labeling machine is just what you need! Using a horizontal rolling method, it’s designed to handle your most challenging labeling tasks with ease. It can label up to 200 pieces per minute, making your production fast and efficient. With support for labels up to 60*80mm and precision within ±1mm, you can trust it to deliver accurate results every time. Feel free to contact us to discuss how this machine can enhance your production line and simplify your labeling process!

  • Labeling Speed

    20 to 200 Products Per Minute

  • Machine Dimensions (L×W×H)

    1900×700×1600mm

Details
Specifications
  • Machine Dimensions (L×W×H)1900×700×1600mm
  • Conveyor Belt Height From Ground780mm
  • Conveyor Belt Width150mm
  • Labeling Speed20-200pcs/min (depending on bottle diameter and label length)
  • Container Height25-95mm
  • Container Diameter15-24mm
  • Label Height Range15-60mm
  • Label Length Range20-80mm
  • Labeling Accuracy±1mm (excluding package and label errors)
  • Inner Diameter of Label Roll40mm/76mm
  • Outer Diameter of Label Roll< 360mm
  • Power Supply220V 50/60HZ 1.5kW
  • Machine Weight200kg
Applications

The fully automatic horizontal rolling adhesive labeling machine is ideal for labeling needs across various industries, including:

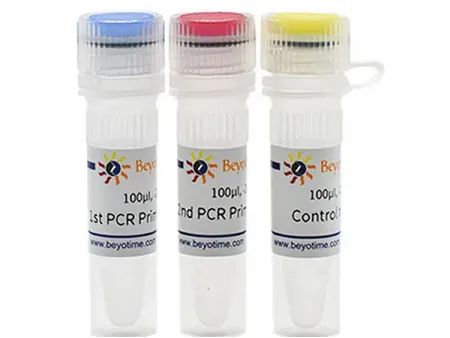

  • Pharmaceuticals: Perfect for products like ampoules, oral liquid bottles, and blood collection tubes.
  • Stationery: Suitable for items like pen barrels, glue sticks, and paste pens.
  • Cosmetics: Designed for products like lipsticks and eyebrow pencils.
  • Meat Products: Excellent for labeling round items that can’t stand upright, such as ham sausages, with full or partial wrap-around labels.
Features
  • Versatile Labeling: Designed for wrap-around labeling of round objects like oral liquid bottles, small batteries, and vials.
  • Adjustable Tilt Design: Features a fully automatic feeding mechanism with precise positioning for accurate labeling.
  • High-Quality Materials: Made with SUS304 stainless steel and aluminum alloy for durability and reliability. Equipped with globally recognized electrical components for stable performance, ensuring no bubbles or wrinkles when applying transparent labels.

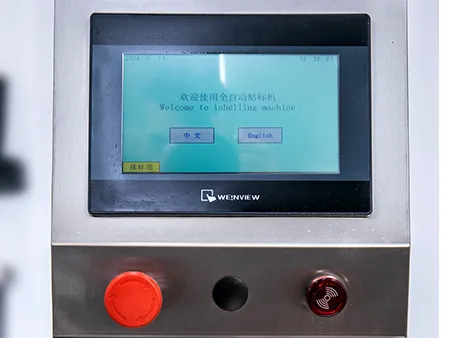

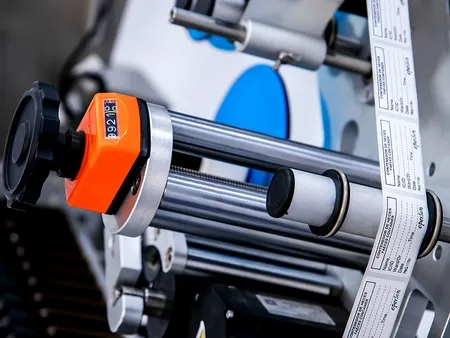

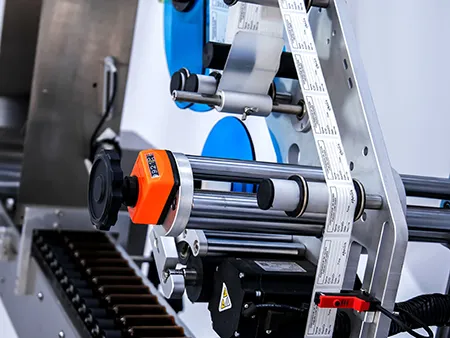

  • Advanced Control System: Utilizes Siemens PLC and servo motors with closed-loop control for high-speed, stable labeling. The label dispenser is powered by a high-torque, low-inertia servo motor for consistent performance.

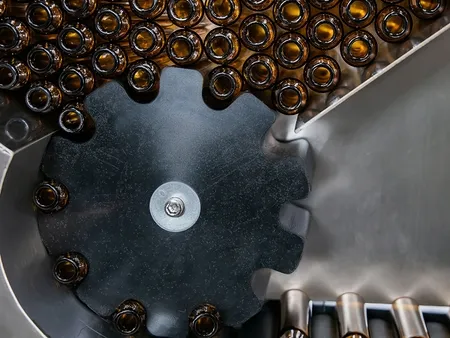

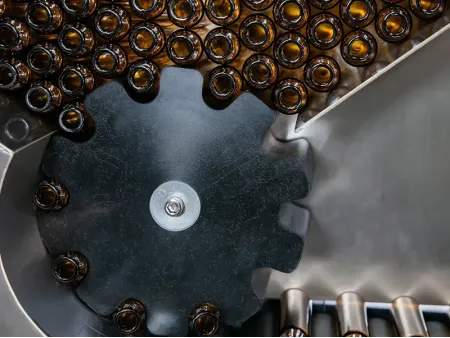

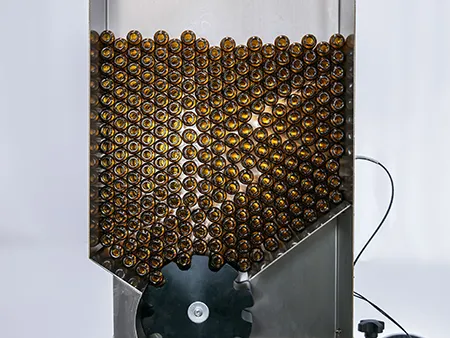

  • Patented Automation Technology: Includes an automatic feeding device and a unique tilted roller conveyor design to ensure products are accurately positioned at the label application station, completing feeding and labeling in one automated process.

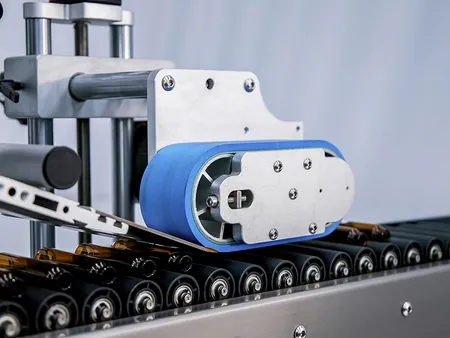

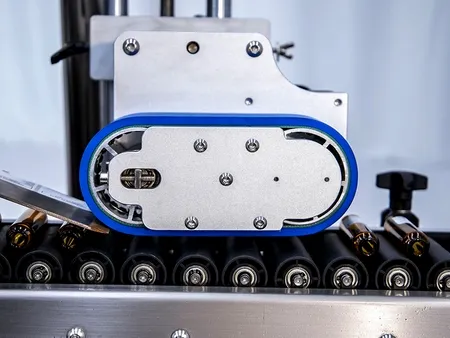

  • Patented Support Mechanism: Ensures labels are applied smoothly without edges peeling or bubbles forming.
  • Flexible Operations: Can operate as a standalone unit or integrate with high-speed filling lines to enhance production efficiency and reduce costs. Custom designs are available based on user requirements.
Videos

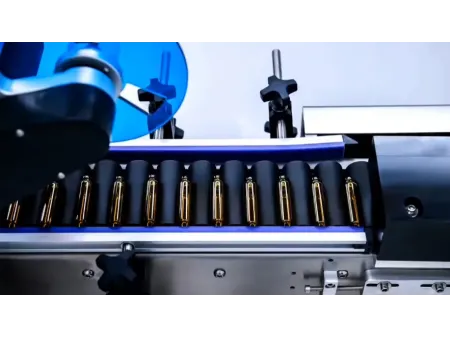

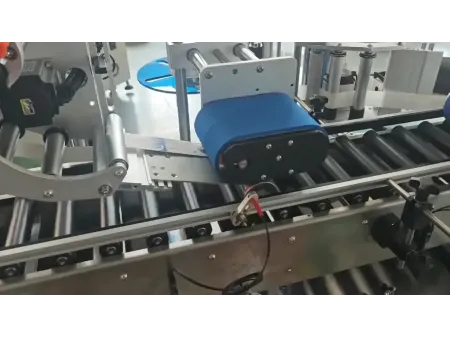

Horizontal Labeling Machine

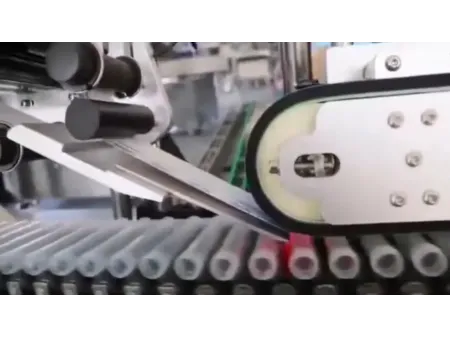

Horizontal Labeling Machine

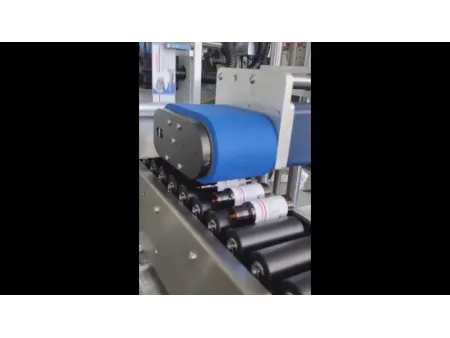

Automatic Labeling Machines for Household Products
Horizontal Labeling Machine for Oral Liquid Company
