ERW API Tube Mill,273mm-630mm Manufacturer

ERW API Tube Mill,273mm-630mm

Request a Quote

View All: http://pipemakingmachines.com/2019/1-13-erw-api-tube-mill-273mm-630mm.html

Round, Square, Rectangular Tube

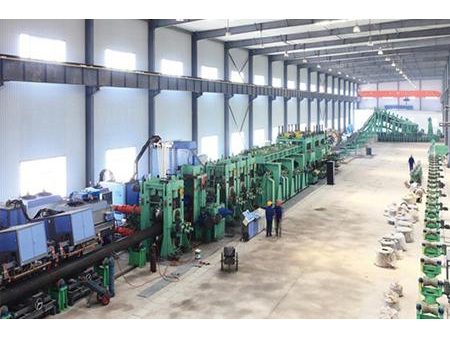

This is our ERW API tube mill with a maximum output of 300,000T products per year!

Production Procedures

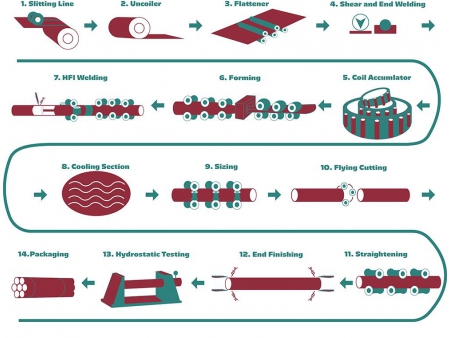

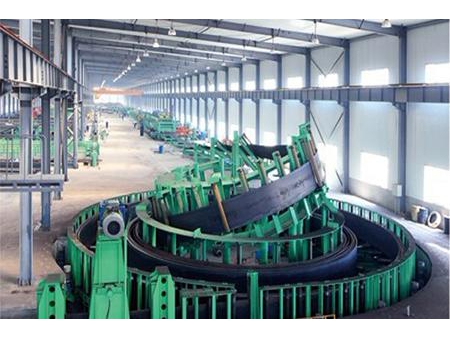

Coil Loading → Uncoiling → Flattening/Leveling → Shearing & End Welding → Coil Accumulator → Forming → Welding → Inner & Outer Deburring → Annealing → Air & Water Cooling → Sizing & Straightening → Flying Saw Cutting → End Facing & Chamfering → Hydrostatic Testing → Ultrasonic Flaw Detection → Weighing & Measuring → Painting & Marking → Packaging → Warehouse Storage

Basic Technical Parameters

Raw Material Specifications

Steel grade:
Line pipe: A, B, X42, X46, X52, X56, X60, X65, X70, X80
Petroleum casing pipe: H40, J55, K55, N80
Structural pipe: Q215, Q235, Q345, 20#
Coil Outer Diameter: Ø1350mm~Ø2000mm
Coil Inner Diameter: Ø610~Ø762mm
Coil Weight: Max. 35T
Strip Width: 860mm~1980mm
Strip Thickness: 6mm~18mm

Finished Pipe Specifications
Technical Standards: API 5L API 5CT GB/T 3091 JIS G3452 JIS G3444 JIS G3445 ASTM A513 EN 10219
Pipe Outer Diameter: Ø 273mm~Ø630mm
Pipe Length: 6~20m
Welding Speed: 15~30m/min

Annual Output: 300,000 tons/year

Total Installed Capacity: Approx. 4,000 kW

Design Concepts

Improves serviceability and productivity
Increase stability of the product quality
Maximize output
Lower equipment cost
To satisfy small-batch production requirements of multiple products
To improve the environment and safety during operation
