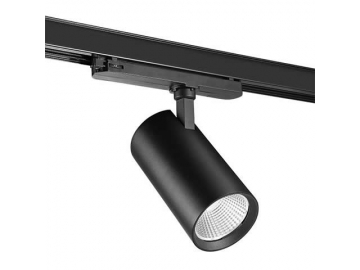

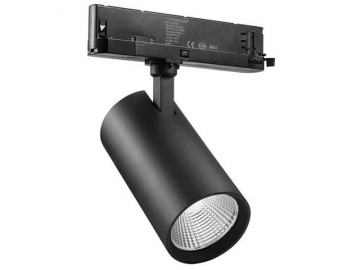

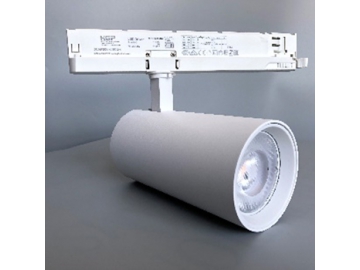

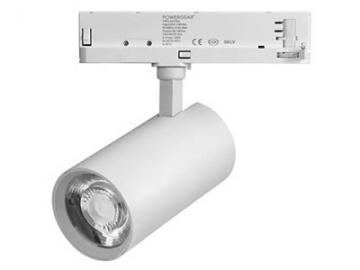

H1 Series LED Track Lighting Head, LED Track Luminaire with Modular Driver Track Adapter
Request a Quote
Features
- The modular design with power supply and track adapter gives the linear light a simple, fashionable appearance.
- We provide two kinds of LED module driver with track adaptor: one is PowerGear,the other is GLOBAL, for you to choose from.
- Four kinds of reflector beam angle: 15°, 24°, 38°and 60°are available.
- If the CRI is up to 80, the luminous efficiency is more than 100Lm/w.
- Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants.
- Four kinds of power: 20W, 25W, 30W and 35W are available.
Specification
- Power 20W/25W/30W/35W
- LED Chip Citizen/CREE COB
- LED Driver PowerGear modular driver and Global modular driver are available
- PF >0.9
- Voltage&Frequency AC220-240V/AC100-240V 50/60Hz
- Luminous Efficacy 100-110lm/W @CRI80 (whole lamp)
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white
- Track adapter PowerGear and Global are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Dimensions
20W/25W/30W/35WProduct Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Reflector Beam Angle | |
| BH-TL-20W-H1 | 20W | Φ80*155mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 15° 24° 38° 60° | |
| BH-TL-25W-H1 | 25W | ||||||
| BH-TL-30W-H1 | 30W | ||||||
| BH-TL-35W-H1 | 35W |
Photometric

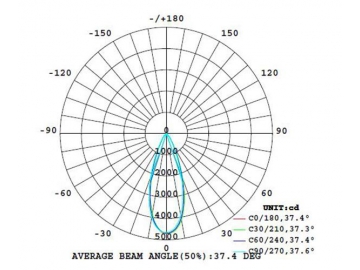

- Luminous Intensity Distribution Diagram 20W 4000K Beam Angle 38°
- The Average Illuminance Effective Figure 20W 4000K Beam Angle 38°
