D1 Series LED Track Lighting Head, LED Track Luminaire with Modular Drive Track Adapter

D1 Series LED Track Lighting Head, LED Track Luminaire with Modular Drive Track Adapter
D1 Series LED Track Lighting Head, LED Track Luminaire with Modular Drive Track Adapter
D1 Series LED Track Lighting Head, LED Track Luminaire with Modular Drive Track Adapter
D1 Series LED Track Lighting Head, LED Track Luminaire with Modular Drive Track Adapter
D1 Series LED Track Lighting Head, LED Track Luminaire with Modular Drive Track Adapter
Request a Quote
Features
  • The modular design with power supply and track adapter gives the linear light a simple, fashionable appearance.
  • We provide two kinds of LED module driver with track adaptor: one is PowerGear,the other is GLOBAL, for you to choose from.
  • Four kinds of lenses beam angle: 15°, 24°, 38°and 60°are available.
  • If the CRI is up to 80, the luminous efficiency is more than 100Lm/w.
  • Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants.
  • Four kinds of power: 20W, 25W, 30W and 35W are available.
Specification
  • Power 20W/25W/30W/35W
  • LED Chip Citizen/CREE COB
  • LED Driver PowerGear modular driver and Global modular driver are available
  • PF >0.9
  • Input Voltage AC220-240V/AC100-240V 50/60HZ
  • Lens Beam Angle 15° 24° 38° 60°
  • Body Material ADC12 die-casting aluminum alloy
  • Adjustable 350° rotation horizontally and 90° pivot
  • Housing color Black/white
  • Track adapter PowerGear and Global are available
  • Phase 1 /2 /3 phase
  • Lifespan 50000 hours
  • Warranty 3-5 Years
Dimensions
Product Models
Model No. Power Dimension LED Chip CCT CRI Luminous Efficacy
BH-TL-20W-D1 20W Φ80*155mm Citizen/
CREE COB
2700K
3000K
3500K
4000K
5000K
80
90
97
100-110lm/W
@CRI80 (whole lamp)
BH-TL-25W-D1 25W
BH-TL-30W-D1 30W
BH-TL-35W-D1 35W
Photometric

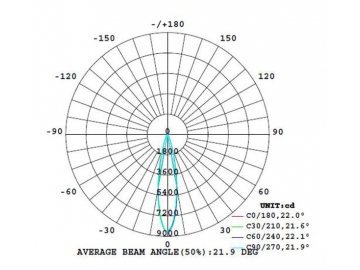

  • Luminous Intensity Distribution Diagram 20W 4000K Beam Angle 24°

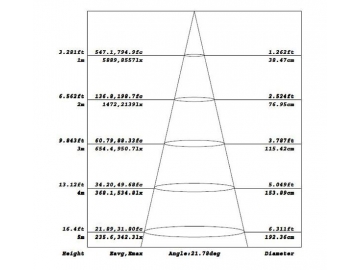

  • The Average Illuminance Effective Figure 20W 4000K Beam Angle 24°
