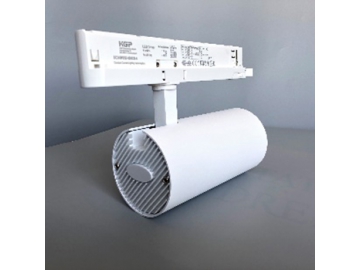

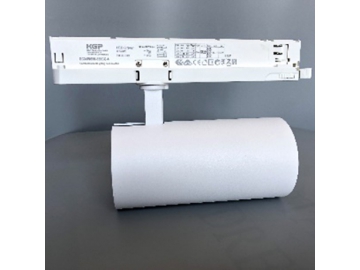

C3 Series LED Track light with Modular Driver and Track Adapter Combined

C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
C3 Series LED Track light with Modular Driver and Track Adapter Combined
Request a Quote
Specification
  • Powerfrom 7W to 43W
  • LED Chip Citizen / CREE COB
  • LED DriverCombined modular driver and track adapter of PowerGear, Global, Philips and KEGU brand are available
  • PF >0.9
  • Body Material 6063 brushed aluminum alloy
  • Adjustable 350° rotation horizontally and 90° pivot
  • Housing color Black / white
  • Phase 1 /2 /3 phase
  • Lifespan 50000 hours
  • Warranty 3-5 Years

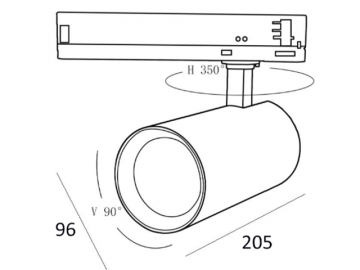

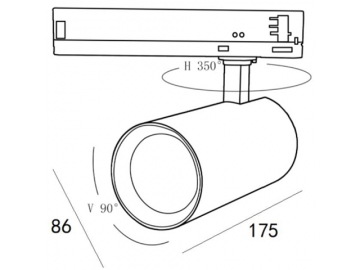

Dimension drawing
Product Models
Model No. Power Dimension LED Chip CCT CRI Luminous Efficacy Beam Angle Input Voltage Track adapter
BH-TL-15W-C3 7~18W Φ66*L118mm Citizen/
CREE COB
2700K
3000K
3500K
4000K
5000K
80
90
97
90-100lm/W
 @CRI80
 (whole lamp)
12°,25°,36°(lens),
15°,24°,38°,60°
(reflector)
AC220-240V/
AC100-240V
50/60Hz
1 phase
2 phase
3 phase

BH-TL-25W-C3 20~28W Φ76*L155mm
BH-TL-35W-C3 26~34W Φ86*L175mm
BH-TL-45W-C3 40~43W Φ96*L205mm
Photometric: 15W 3000K Beam Angle 24°

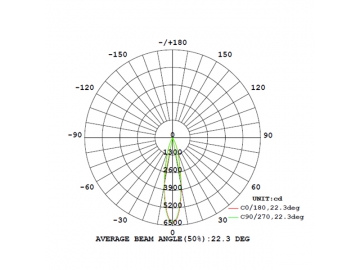

  • Luminous Intensity Distribution Diagram

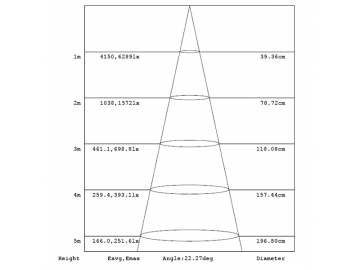

  • The Average Illuminance Effective Figure
