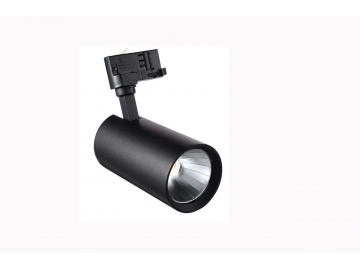

H3 Series LED Track Lighting Head, 30W/35W LED Track Luminaire with Straight Tube and Built-in Driver

H3 Series LED Track Lighting Head, 30W/35W LED Track Luminaire with Straight Tube and Built-in Driver
H3 Series LED Track Lighting Head, 30W/35W LED Track Luminaire with Straight Tube and Built-in Driver
H3 Series LED Track Lighting Head, 30W/35W LED Track Luminaire with Straight Tube and Built-in Driver
H3 Series LED Track Lighting Head, 30W/35W LED Track Luminaire with Straight Tube and Built-in Driver
Request a Quote
Application

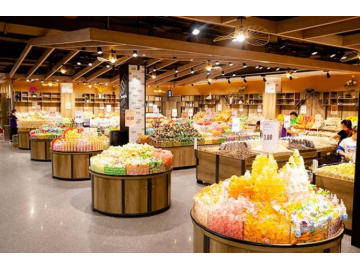

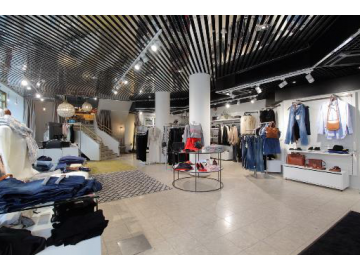

Ideal for gallery, museum, retail store, shopping mall, exhibition hall and other commercial or private applications.

Specification
  • Power 30W/35W
  • LED Chip Citizen/CREE COB
  • LED Driver Tridonic, philips, OSRAM, Lifud, BOKE, Others are available
  • Dimming options Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
  • PF >0.9
  • Body Material ADC12 die-casting aluminum alloy
  • Adjustable 350° rotation horizontally and 90° pivot
  • Housing color Black/white
  • Track adapter Global, PowerGear and other brands are available
  • Phase 1 /2 /3 phase
  • Lifespan 50000 hours
  • Warranty 3-5 Years
Dimension
Product Models
Model No. Power Dimension LED Chip CCT CRI Luminous Efficacy Beam
Angle
Input Voltage Track
adapter
BH-TL-30W-H3 30W Φ90*200mm Citizen/
CREE COB
2700K
3000K
3500K
4000K
5000K
80
90
97
120lm/W
@CRI80
20°/30°/45°/60° BOKE driver
flicker-free
AC220-240V/AC100-240V 50/60Hz
1 phase
2 phase
3 phase
BH-TL-35W-H3 35W 130lm/W
@CRI80
Tridonic /Philips / Osram driver
flicker-free
AC220-240V/AC100-240V 50/60Hz
